I-shaped inductance RL 0507 | GETWELL

Short Description:

I-shaped inductance feature & characteristic:

◆Small size radial lead type.

◆Small mounting space required.

◆Excellent characteristics for High Q.

◆Minimized distributed capacitance hence high SRF.

◆Special lead wire construction prevents open circuit failures.

◆Covered with PVC sleeve or UL tube.

◆Available taped for auto insertion.


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    I-shaped inductance feature & characteristic:

    ◆Small size radial lead type.

    ◆Small mounting space required.

    ◆Excellent characteristics for High Q.

    ◆Minimized distributed capacitance hence high SRF.

    ◆Special lead wire construction prevents open circuit failures.

    ◆Covered with PVC sleeve or UL tube.

    ◆Available taped for auto insertion.

    Radial power inductor application:

    ◆TVs and Audio equipment.

    ◆Telecommunication devices.

    ◆Buzzers and Alarm systems.

    ◆Switching Power Supplies.

    ◆Systems requiring Band and High Q.

    ◆ Other noise filters.

    Radial inductor specifications

    Type  Inductance (uH)  Q(Min) Measuring Frenquency   S.R.F (MHz) Min DCR Ω
    (Max)
    DCI mAMax
    RL0507-1R0M 1.0±20% 85 7.96MHz 140 0.014 4000
    RL0507-1R5M 1.5±20% 85 90 0.02 3000
    RL0507-2R2M 2.2±20% 85 55 0.02 2500
    RL0507-3R3M 3.3±20% 85 50 0.03 2000
    RL0507-4R7M 4.7±20% 85 30 0.04 1900
    RL0507-6R8M 6.8±20% 80 25 0.06 1500
    RL0507-100K 10±10% 75 2.52MHz 22 0.08 1400
    RL0507-120K 12±10% 70 20 0.10 1200
    RL0507-150K 15±10% 70 16 0.11 1000
    RL0507-180K 18±10% 65 14 0.11 950
    RL0507-220K 22±10% 50 14 0.12 900
    RL0507-270K 27±10% 50 12 0.14 800
    RL0507-330K 33±10% 50 10 0.16 700
    RL0507-390K 39±10% 50 9.0 0.18 650
    RL0507-470K 47±10% 45 9.0 0.20 600
    RL0507-560K 56±10% 35 8.0 0.22 550
    RL0507-680K 68±10% 35 8.0 0.30 520
    RL0507-820K 82±10% 35 7.0 0.34 490
    RL0507-101K 100±10% 20 796KHz 6.0 0.36 420
    RL0507-121K 120±10% 20 5.5 0.44 360
    RL0507-151K 150±10% 20 5.0 0.52 320
    RL0507-181K 180±10% 20 4.5 0.65 320
    RL0507-221k 220±10% 20 4.0 0.75 300
    RL0507-271k 270±10% 25 3.5 1.0 250
    RL0507-331K 330±10% 25 3.0 1.3 240
    RL0507-391K 390±10% 25 3.0 1.4 200
    RL0507-471K 470±10% 25 2.7 1.6 200
    RL0507-561K 560±10% 25 2.5 2.0 190
    RL0507-681K 680±10% 25 2.4 2.3 170
    RL0507-821K 820±10% 25 2.2 2.7 150
    RL0507-102K 1000±10% 50 252KHz 2.0 3.1 130
    RL0507-122K 1200±10% 65 1.5 4.6 120
    RL0507-152K 1500±10% 65 1.3 5.3 110
    RL0507-182K 1800±10% 65 1.2 6.2 100
    RL0507-222K 2200±10% 65 1.1 6.8 90
    RL0507-272K 2700±10% 80 1.0 10 90
    RL0507-332K 3300±10% 75 0.95 12 80
    RL0507-392K 3900±10% 70 0.90 13 70
    RL0507-472K 4700±10% 65 0.90 15 60
    RL0507-562K 5600±10% 65 0.80 22 60
    RL0507-682K 6800±10% 65 0.75 25 55
    RL0507-822K 8200±10% 65 0.70 28 55
    RL0507-103K 10000±10% 65 79.6KHz 0.60 35 45
    RL0507-123K 12000±10% 65 0.45 45 45
    RL0507-153K 15000±10% 65 0.40 52 35
    RL0507-183K 18000±10% 65 0.40 58 35
    RL0507-223K 22000±10% 65 0.35 80 25
    RL0507-273K 27000±10% 65 0.30 90 25
    RL0507-333K 33000±10% 55 0.25 135 15
    RL0507-393K 39000±10% 55 0.25 150 15
    RL0507-473K 47000±10% 55 0.25 170 15

    Remark:

    1.Tolerance(J:5%, K:10%, L:15%, M:20%)

    2.Customer’s Specifications are welcome.

    I-shaped inductance images

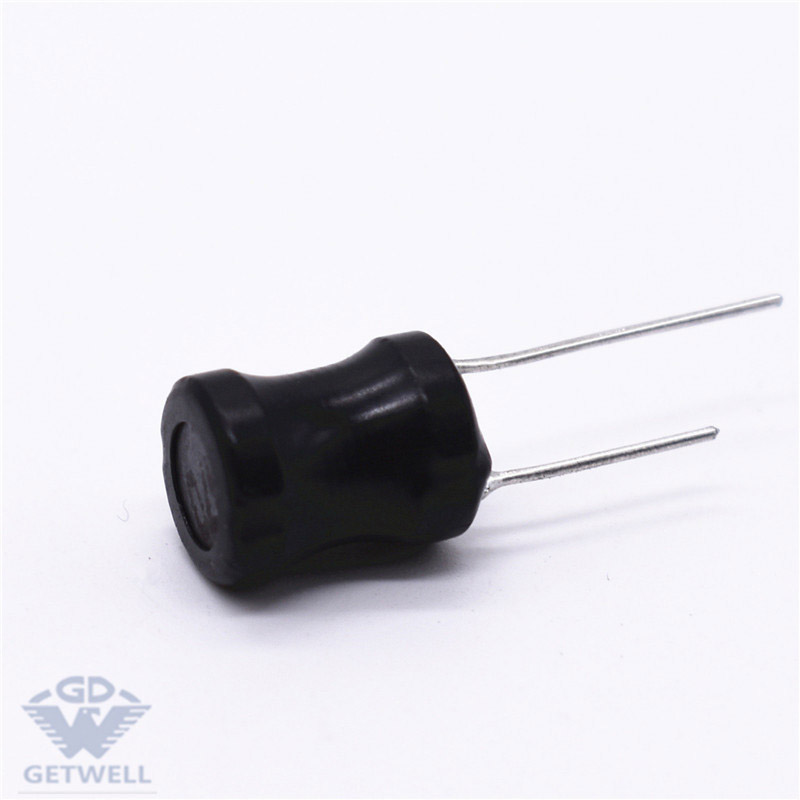

    radial  inductor

    radial  inductor

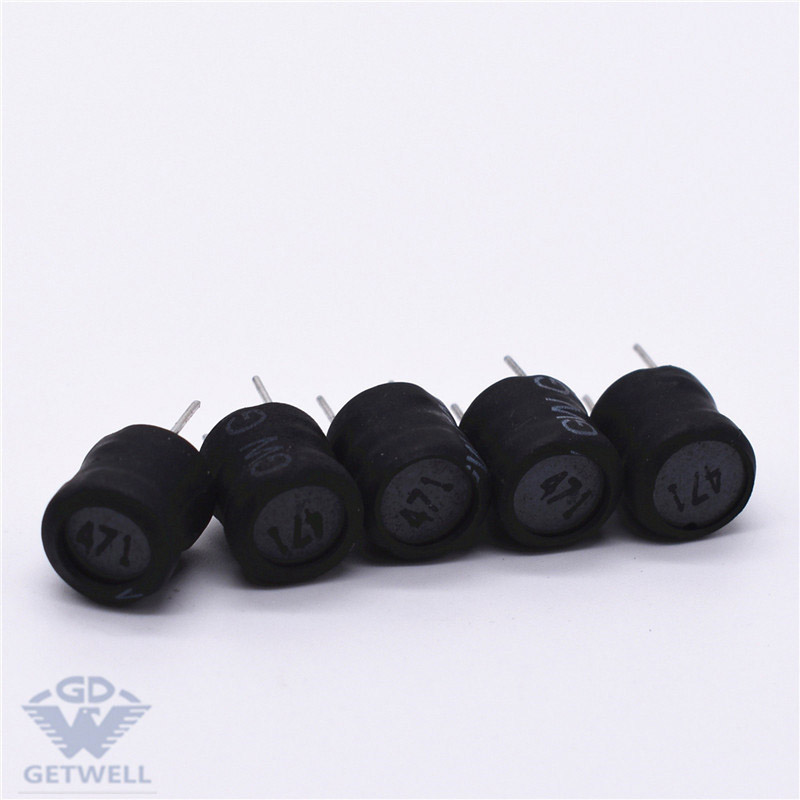

    radial lead inductor

    radial lead inductor

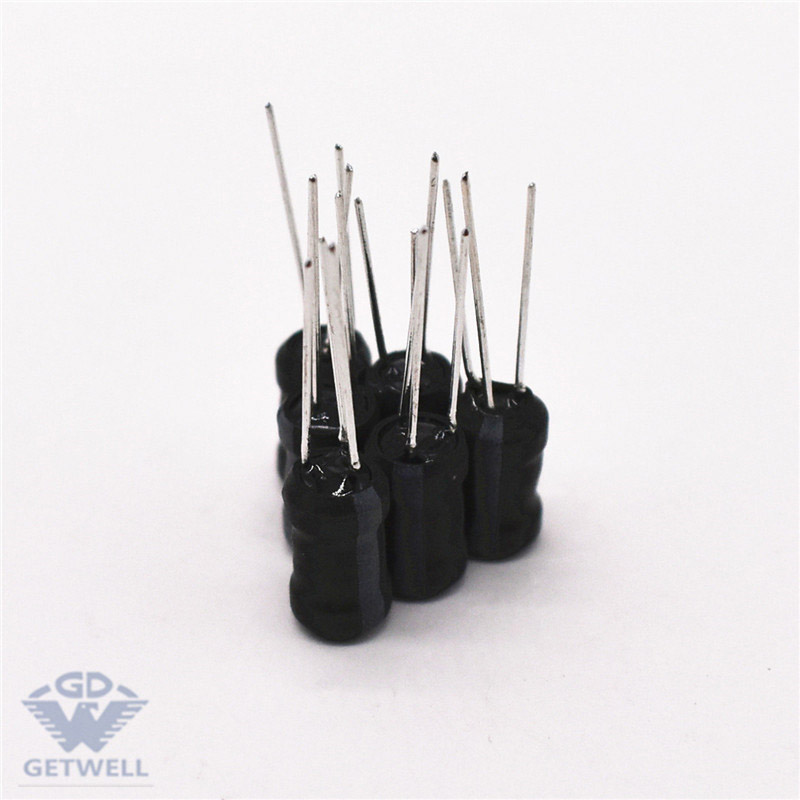

    10 uh inductor radial
