Short Description:

Radial inductor feature & characteristic:

◆Small size radial lead type.

◆Small mounting space required.

◆Excellent characteristics for High Q.

◆Minimized distributed capacitance hence high SRF.

◆Special lead wire construction prevents open circuit failures.

◆Covered with PVC sleeve or UL tube.

◆Available taped for auto insertion.


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Radial  inductor feature & characteristic:

    ◆Small size radial lead type.

    ◆Small mounting space required.

    ◆Excellent characteristics for High Q.

    ◆Minimized distributed capacitance hence high SRF.

    ◆Special lead wire construction prevents open circuit failures.

    ◆Covered with PVC sleeve or UL tube.

    ◆Available taped for auto insertion.

    Radial leaded inductors application:

    ◆TVs and Audio equipment.

    ◆Telecommunication devices.

    ◆Buzzers and Alarm systems.

    ◆Switching Power Supplies.

    ◆Systems requiring Band and High Q.

    ◆ Other noise filters.

    Radial inductor specifications

    Type  Inductance (uH)  Q(Min) Measuring Frequency SRF MHz (Min) DCR Ω(max) DCI mA
    (max)
    RL0707-1R0M 1.0 90 7.96MHz 100 0.014 5980
    RL0707-1R5M 1.5 90 80 0.017 4850
    RL0707-2R2K 2.2 90 40 0.017 3560
    RL0707-3R3K 3.3 90 40 0.021 2970
    RL0707-4R7K 4.7 90 36 0.03 2340
    RL0707-6R8M 6.8 90 30 0.054 1980
    RL0707-100K 10 85 2.52MHz 15 0.084 1980
    RL0707-120K 12 85 15 0.09 1880
    RL0707-150K 15 65 15 0.11 1650
    RL0707-180K 18 65 15 0.12 1550
    RL0707-220K 22 65 11 0.13 1413
    RL0707-270K 27 50 11 0.14 1278
    RL0707-330K 33 50 11 0.15 1161
    RL0707-390K 39 50 11 0.16 1062
    RL0707-470K 47 50 7 0.22 972
    RL0707-560K 56 50 7 0.25 891
    RL0707-680K 68 40 7 0.31 810
    RL0707-820K 82 40 7 0.34 729
    RL0707-101K 100 40 796KHz 4 0.43 675
    RL0707-121K 120 40 4 0.56 630
    RL0707-151K 150 60 4 0.94 531
    RL0707-181K 180 60 4 1.02 504
    RL0707-221K 220 60 4 1.14 477
    RL0707-271K 270 60 3 1.29 432
    RL0707-331K 330 70 3 2.04 387
    RL0707-391K 390 70 2 2.24 360
    RL0707-471K 470 70 2 2.51 333
    RL0707-561K 560 55 2 2.83 306
    RL0707-681K 680 55 2 3.08 279
    RL0707-821K 820 55 2 3.41 261
    RL0707-102K 1000 75 252KHz 1.5 3.90 189
    RL0707-122K 1200 75 1.5 4.42 180
    RL0707-152K 1500 75 1.5 5.11 162
    RL0707-182K 1800 75 1.0 5.81 144
    RL0707-222K 2200 75 1.0 8.38 135
    RL0707-272K 2700 75 1.0 9.59 126
    RL0707-332K 3300 75 1.0 11.04 117
    RL0707-392K 3900 75 0.8 12.5 108
    RL0707-472K 4700 75 0.8 14.3 99
    RL0707-562K 5600 70 0.8 16.0 90
    RL0707-682K 6800 70 0.5 20.9 81
    RL0707-822K 8200 70 0.5 29.2 72
    RL0707-103K 10000 70 79.6KHz 0.5 33.4 63
    RL0707-123K 12000 70 0.5 43.1 54
    RL0707-153K 15000 70 0.5 50.5 54
    RL0707-183K 18000 70 0.3 69.1 45
    RL0707-223K 22000 70 0.3 80.6 36
    RL0707-273K 27000 70 0.3 94.2 27
    RL0707-333K 33000 70 0.3 139.0 18
    RL0707-393K 39000 70 0.3 155.6 18
    RL0707-473K 47000 70 0.3 176.6 18

    Remark:

    1.Tolerance(J:5%, K:10%, L:15%, M:20%)

    2.Customer’s Specifications are welcome.

    Radial inductor images

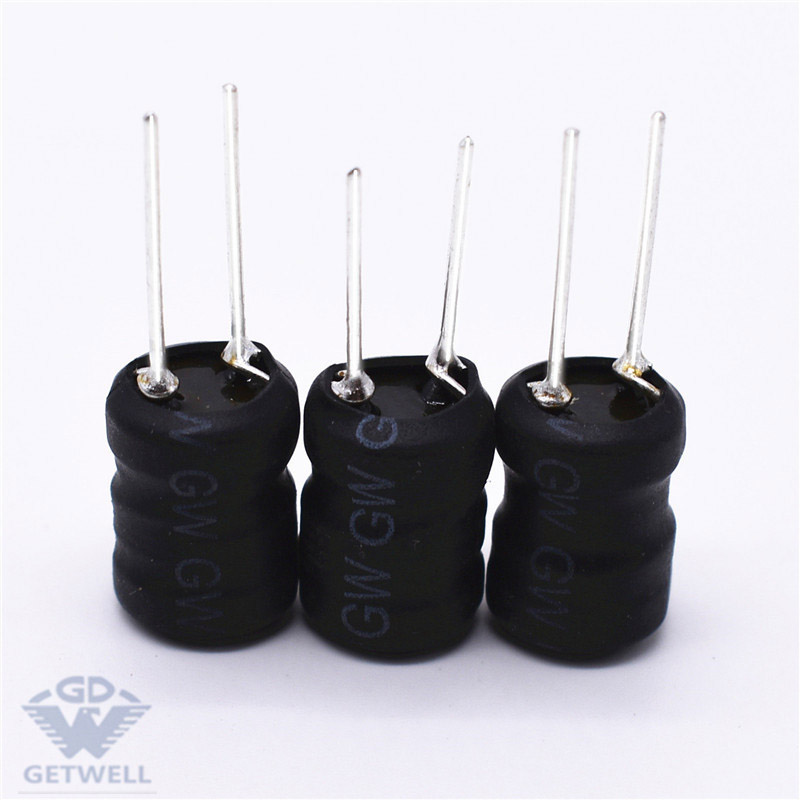

    radial choke inductor

    radial choke inductor

    I-shaped inductance

    I-shaped inductance

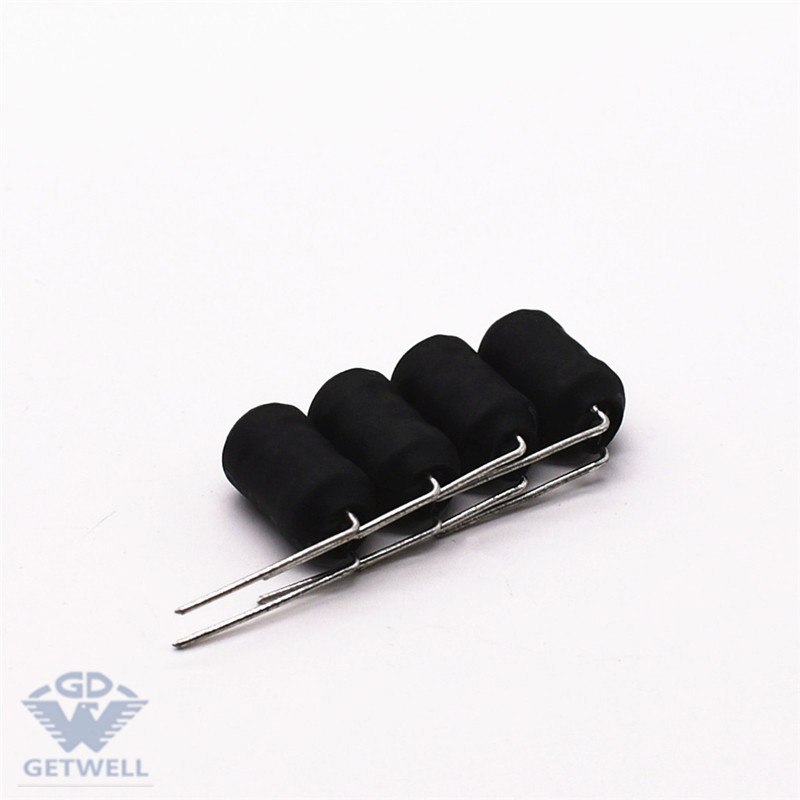

    pin radial lead inductor

    pin radial lead inductor

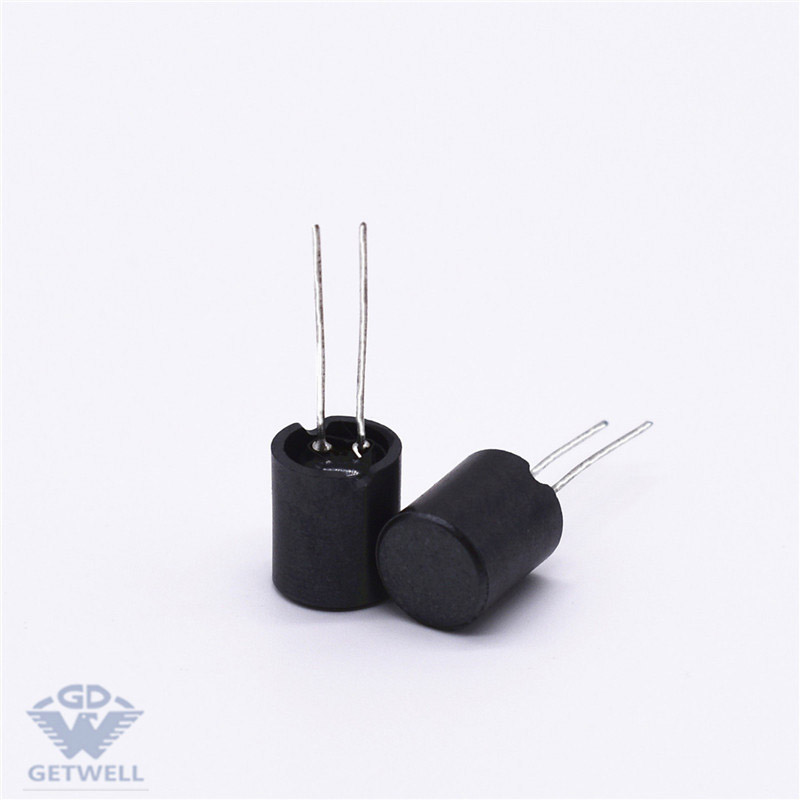

    Radial choke Inductors
