radial inductor 1mh RLP0913W3R-6.5MH-E | GETWELL

Short Description:

Radial inductor 1mh feature & characteristic:

★contain high-frequency ferrite

★comparatively large rated current.


  • FOB Price: US $0.01 - 9.9 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 1000000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Radial inductor 1mh feature & characteristic:

    ★contain high-frequency ferrite

    ★comparatively large rated current.

    Radial lead inductor application:

    ★Power supplies ,DC-DC converters.

    ★TVs,VTRs,computers.

    ★Computer peripheras.

    ★Telephones,air-conditions

    ★Home electric appliance.

    ★Electronic toys and games

    Write your message here and send it to us

    Radial inductor specifications

    SGN Type Power Inductor

    radial inductor

    SYMBOL A B C D E F1/F2 G W (S) (F)
    标注
    DIMENSIONS 9.5 14 11 11 18 3 10.5 Φ0.60 START FINISH
    RL0913W3 MAX MAX ±2.0 ±2.0 ±2.0 ±0.3 MAX ±0.05 起线 收线
    SYMBOL A B C/D E F1 F2 W G (S) (F)
    标注
    DIMENSIONS 8.5 12.5 10 15 3 2.5 Φ0.50 9 START FINISH
    Specification Table
    Part Number  Inductance L0(mH) DCR (mΩ)typ.@25℃
        L1-2 L1-3 R1-2 R1-3
    RL0913W3 6.5±10% 60±10% 20.0MAX 60.0MAX

    Remark:

    Customer’s Specifications are welcome.

    Radial inductor images

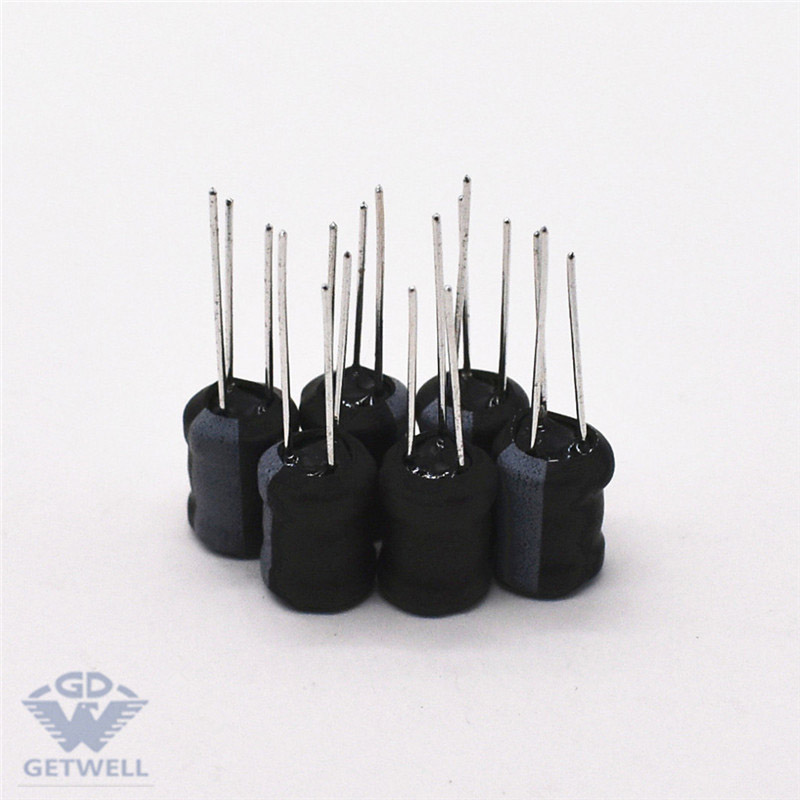

    pin radial lead inductor

    pin radial lead inductor

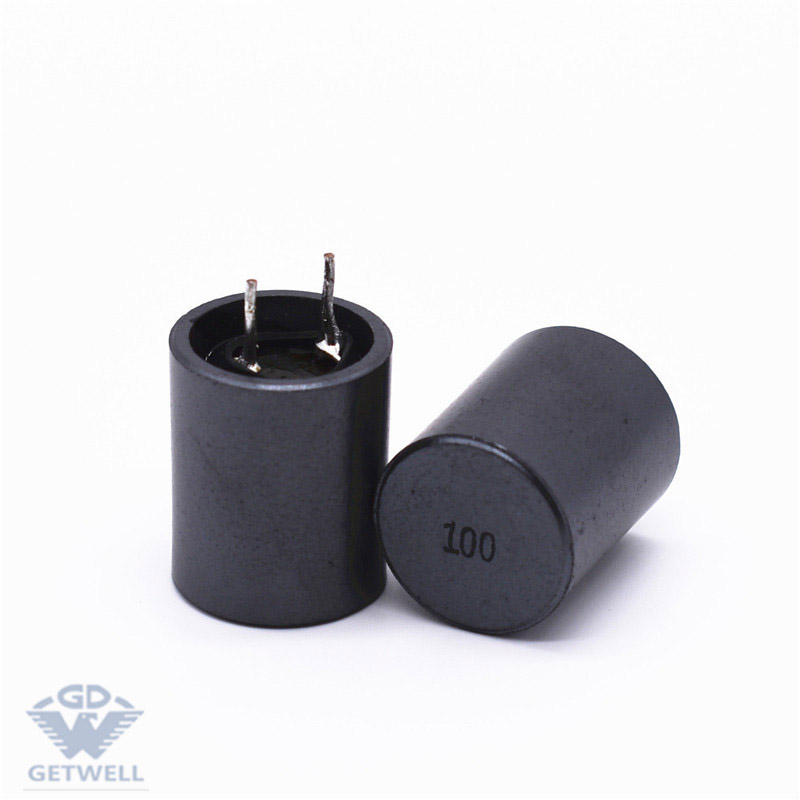

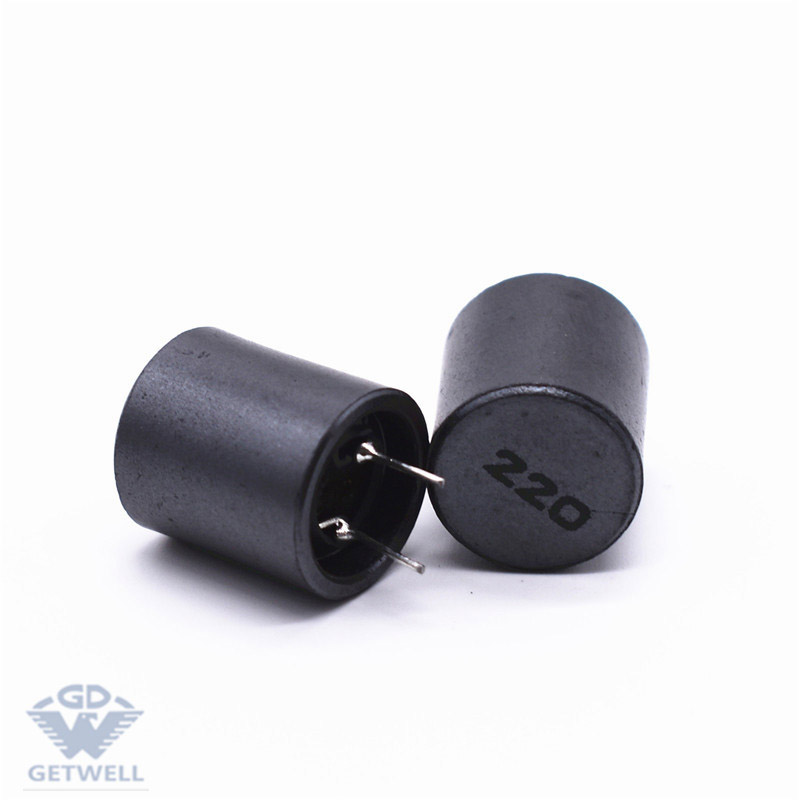

    radial 250 mh inductor

    radial 250 mh inductor

    radial  inductor

    radial  inductor
