Radial inductor 100mh-RL0809W3R-503K-652K-P | GETWELL

Short Description:

Radial inductor feature & characteristic:

★contain high-frequency ferrite

★comparatively large rated current.


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Radial inductor feature & characteristic:

    ★contain high-frequency ferrite

    ★comparatively large rated current.

    Inductor radial application:

    ★Power supplies ,DC-DC converters.

    ★TVs,VTRs,computers.

    ★Computer peripheras.

    ★Telephones,air-conditions

    ★Home electric appliance.

    ★Electronic toys and games

    Radial inductor specifications

    SGN Type Power Inductor

    radial inductor



    SYMBOL A B C D E F1/F2 G W (S) (F)
    标注
    DIMENSIONS 9.5 14 11 11 18 3 10.5 Φ0.60 START FINISH
    SYMBOL A B C/D E F1 F2 W G (S) (F)
    标注
    DIMENSIONS 8.5 12.5 10 15 3 2.5 Φ0.50 9 START FINISH
    RL0809W3 MAX MAX ±2.0 ±2.0 ±0.3 ±0.3 ±0.05 MAX 起线 收线
    Specification Table
    Part Number  Inductance L0(mH) DCR (mΩ)typ.@25℃
        L1-2 L1-3 R1-2 R1-3
    RL0809W3 3.5±10% 50±10% 20MAX 90MAX

    Remark:

    Customer’s Specifications are welcome.

    Radial inductor images

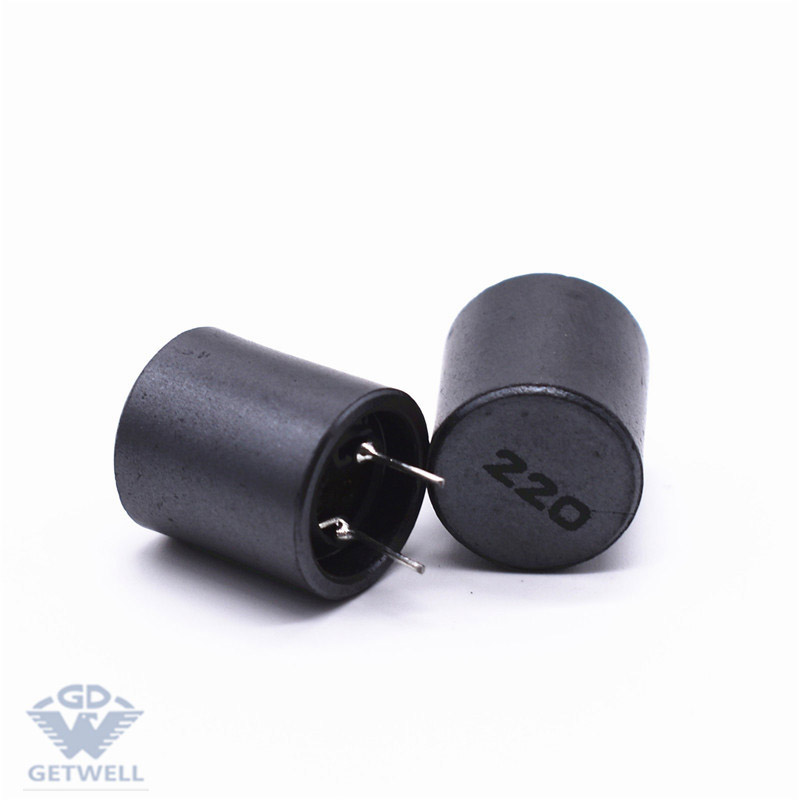

    I-shaped inductance

    I-shaped inductance

    fixed radial inductor polarity

    fixed radial inductor polarity

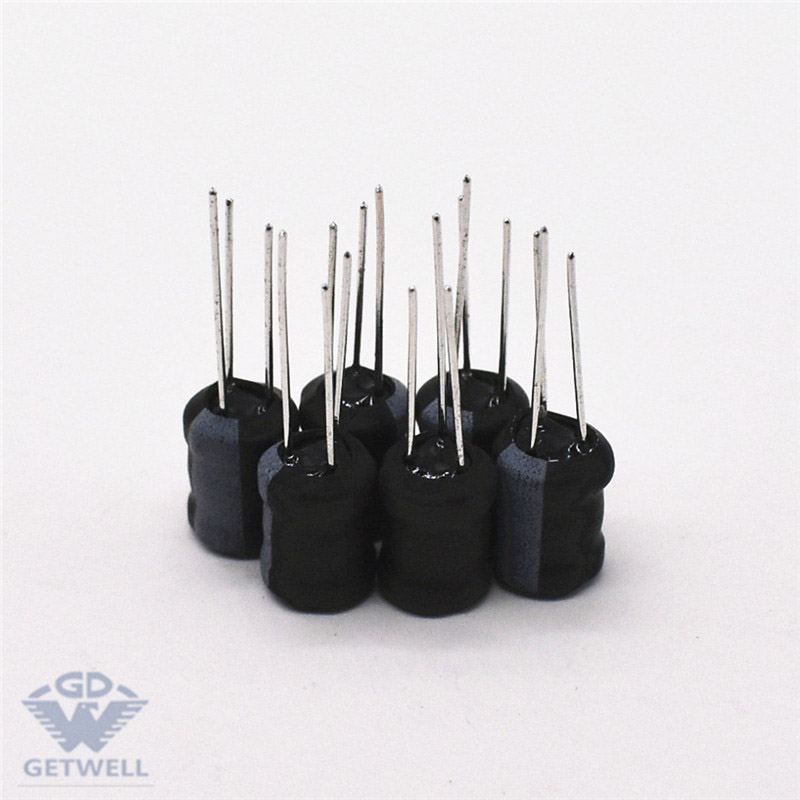

    pin radial lead inductor

    pin radial lead inductor

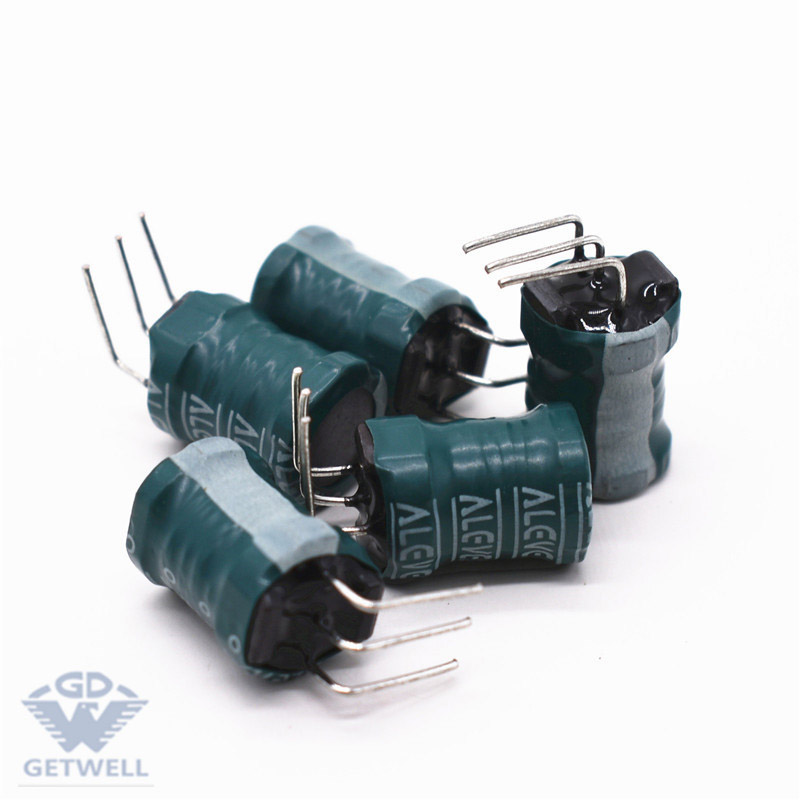

    3 pin radial lead inductor

    3 pin radial lead inductor
