Short Description:

Radial power inductor feature & characteristic:

★Ideal sl a choke coil for nioise filtering.

★It is suitable for usr in audio processing circuits for low ,high and bandpass filtering.


  • FOB Price: US $0.01 - 9.9 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 1000000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Radial power inductor feature & characteristic:

    ★Ideal sl a choke coil for nioise filtering.

    ★It is suitable for usr in audio processing circuits for low ,high and bandpass filtering.

    Radial leaded power inductor application:

    ★Ideal for use as a power choke coil in general household appliances such as TV set,video appliances and industrial equipment.

    ★Can also bi used as peaking coil in filtering applicatoins cammunication equipment

    Radial inductor specifications

    RLB Type Power Inductor

    radial inductors

    SYMBOL DIMENSIONS/尺寸参数(mm)
    A B C D W
    RLB1519 16Max 20Max 5±1.0 7.5±0.5 Φ0.60±0.05
    R
    Part Number  Inductance L0(uH) DCR (mΩ)typ.@25℃ Q/50KHz
    min
    IDC(mA)
    Drop 10%
    Test frequency
    RLB1519 10-4700 8-1800 null 6000-160 1KHz

    Radial power inductors images

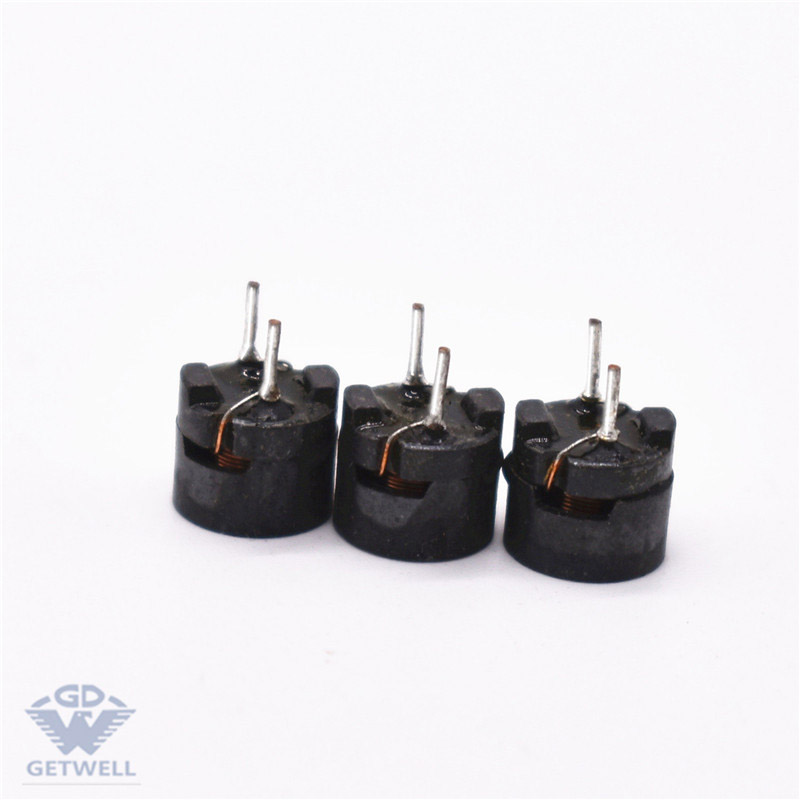

    ferrite core radial leaded inductor

    ferrite core radial leaded inductor

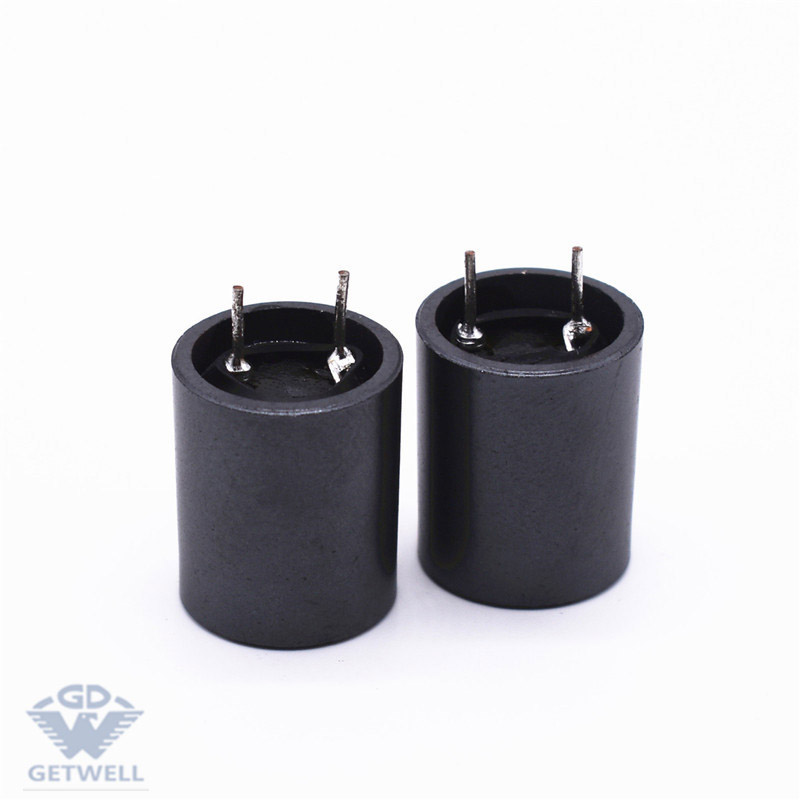

    inductor radial

    inductor radial

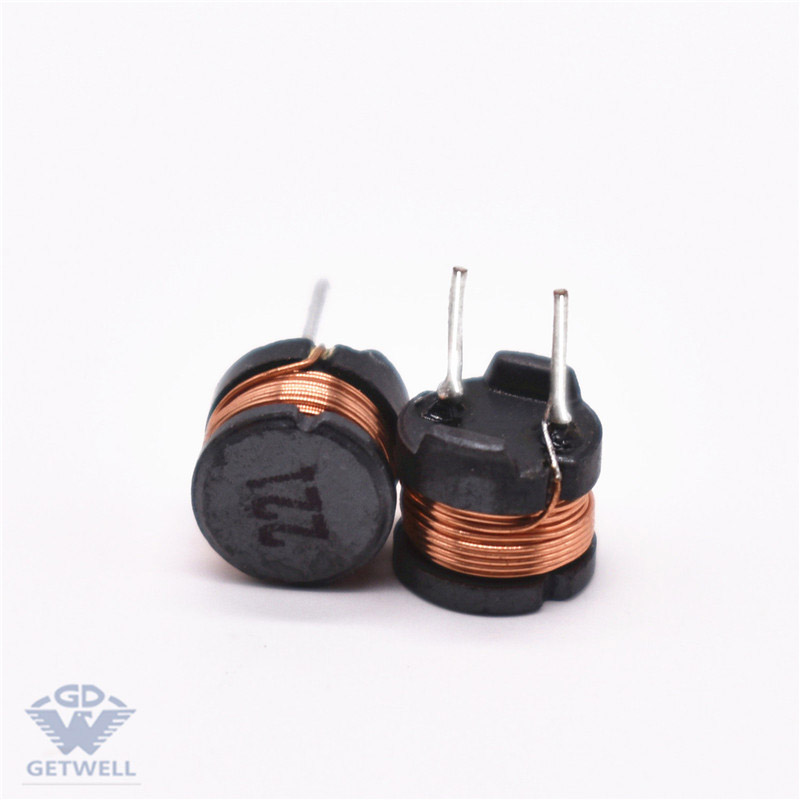

    pin radial lead inductor

    pin radial lead inductor
