Radial inductor 1mh-RLB 1316 | GETWELL

Short Description:

Radial inductor feature & characteristic:

★Ideal sl a choke coil for nioise filtering.

★It is suitable for usr in audio processing circuits for low ,high and bandpass filtering.


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Radial inductor feature & characteristic:

    ★Ideal sl a choke coil for nioise filtering.

    ★It is suitable for usr in audio processing circuits for low ,high and bandpass filtering.

    Radial power inductor application:

    ★Ideal for use as a power choke coil in general household appliances such as TV set,video appliances and industrial equipment.

    ★Can also bi used as peaking coil in filtering applicatoins cammunication equipment

    Radial inductor specifications

    RLB Type Power Inductor

    radial inductors

    SYMBOL DIMENSIONS/尺寸参数(mm)
    A B C D W
    RLB1316 14Max 16Max 5±1.0 5±0.5 Φ0.60±0.05
    R
    Part Number  Inductance L0(uH) DCR (mΩ)typ.@25℃ Q/50KHz
    min
    IDC(mA)
    Drop 10%
    Test frequency
    RLB1316 10-3300 10-1650 null 5000-170 1KHz

    Radial inductors images

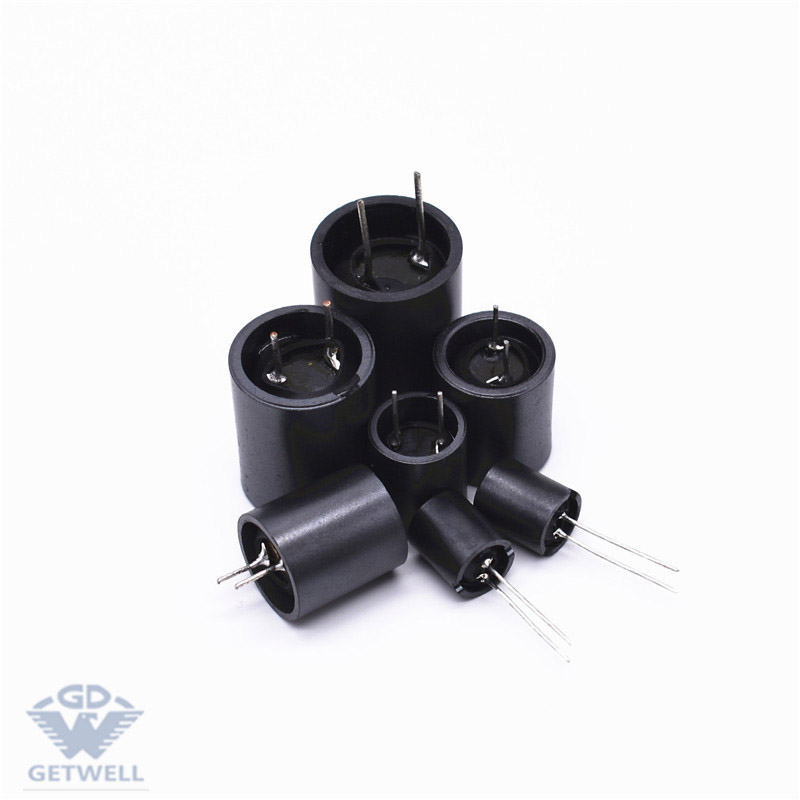

    shield radial  inductor

    shield radial  inductor

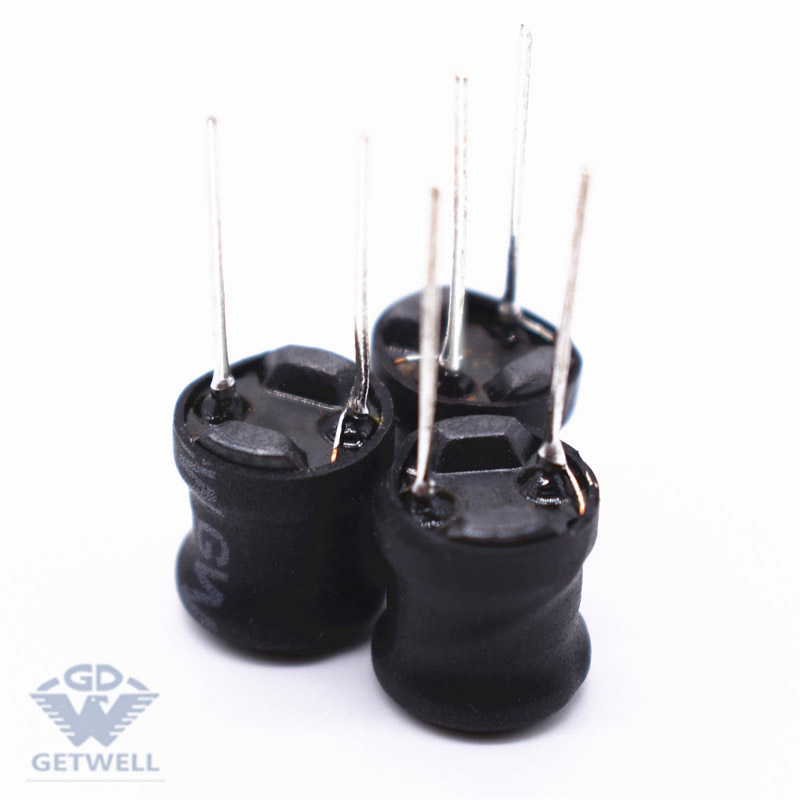

    radial lead inductor

    radial lead inductor
