wide band choke-R6H | GETWELL

Short Description:

Wideband rf choke Feature

◆Compact, medium current (up to 3Amps) high impedance EMI suppression component.

◆Five turn configurations can provide impedance higher than 600 ohms.

◆Core materials is Ni-Zn ferrite. Tin-covered wire.


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Wideband rf choke Feature

    ◆Compact, medium current (up to 3Amps) high impedance EMI suppression component.

    ◆Five turn configurations can provide impedance higher than 600 ohms.

    ◆Core materials is Ni-Zn ferrite. Tin-covered wire.

    Wideband choke rf application:

    ◆Power and signal filtering.

    ◆High frequency board band transformers (balun core devices).

    Super wideband rf choke construction & parameter :

    wideband rf choke construction

    Type IMPEDANCE IZI(Ω)at 23℃ 100MHz typ TURNS DIMENSIONS
    R6H-IT5S-360 360 1.5TS A B C D
    R6H-IT5S-450 450 1.5TS 6.0±5.0 10.0±0.3 0.6±0.03 10.0±2.0
    R6H-2T0S-490 490
         2.0TS

    R6H-2T0S-650 650 2.0TS
    R6H-2T5S-710 710 2.5TS
    R6H-2T5S-880 880 2.5TS
    R6H-3T0S-850 850 3.0TS
    R6H-3T0S-1080 1080 3.0TS
    R6H-1T5D-360 360 1.5TSx2
    R6H-1T5D-450 450 1.5TSx2

    Remark:

    1.Customer’s Specifications are welcome.

    Wideband bias choke images

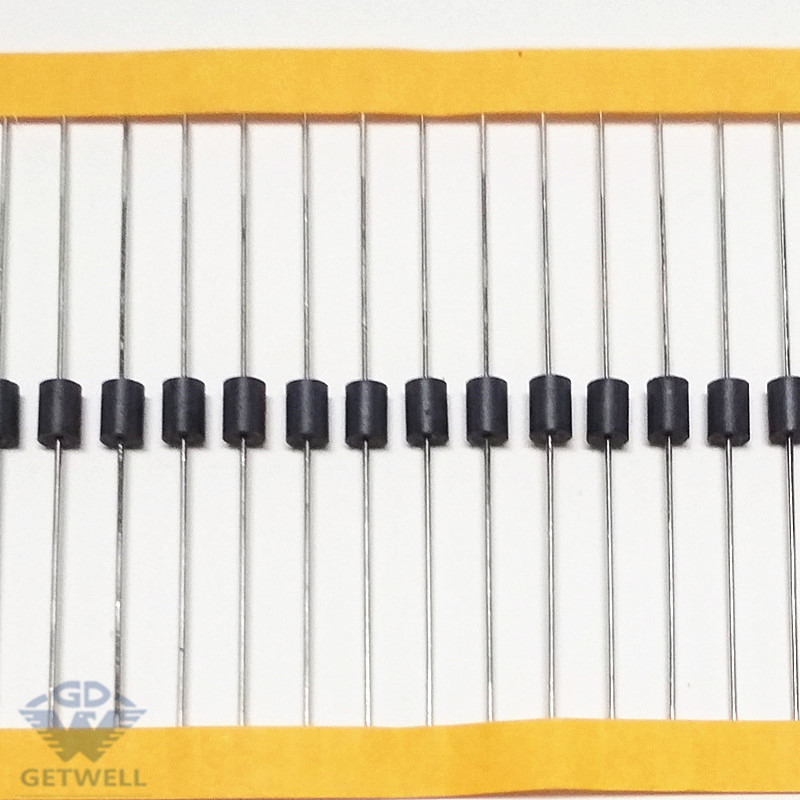

    wide band choke

    wide band choke

     wide band rf choke

    wide band rf choke

    Coilcraft wideband choke production details
