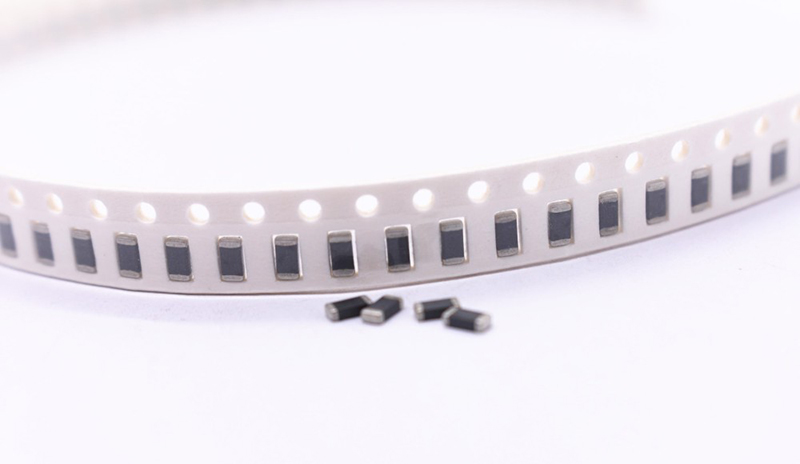

Wire wound chip inductors-CHW | GETWELL

Short Description:

Wire wound chip inductors feature & characteristic:

★small and lightweight

★Wide inductance range ,1nh to 3.3uh

★Excellent solderability and resistance to soldering heat suitable for flow and reflow soldering.


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Wire wound chip inductors feature & characteristic:

    ★small and lightweight

    ★Wide inductance range ,1nh to 3.3uh

    ★Excellent solderability and resistance to soldering heat suitable for flow and reflow soldering.

    Inductor smd datasheet

     CHIP INDUCTORS CHW Series

      CHW1608 (0603) Type

    Type  Inductance
    (nH)
    Inductance
    Test Frequency
    Tolerance Q (Min) Q
    Test Frequency
    S.R.F Min                  (MHz) RDC Max                     (Ω) IDC Max                      (mA)
    CHW1608-1N0 1.0 100 MHz ±0.15 nH
    or
    ±0.3 nH
    30 1000 MHz 6000 0.06 500
    CHW1608-1N2 1.2 0.06
    CHW1608-1N5 1.5 0.07
    CHW1608-1N8 1.8 0.08
    CHW1608-2N2 2.2 0.09
    CHW1608-2N7 2.7 0.10
    CHW1608-3N3 3.3 5500 0.12
    CHW1608-3N9 3.9 ± 5% 5500 0.15 450
    CHW1608-4N7 4.7 4800 0.17
    CHW1608-5N6 5.6 4600 0.18 430
    CHW1608-6N8 6.8 3550 0.20
    CHW1608-8N2 8.2 3500 0.28 400
    CHW1608-10N 10 2800 0.32
    CHW1608-12N 12 2800 0.35
    CHW1608-15N 15 2500 0.41 350
    CHW1608-18N 18 2300 0.45
    CHW1608-22N 22 2000 0.50 300
    CHW1608-27N 27 2000 0.55
    CHW1608-33N 33 1800 0.60
    CHW1608-39N 39 1800 0.80
    CHW1608-47N 47 1800 0.95 250
    CHW1608-56N 56 1800 1.20
    CHW1608-68N 68 1500 1.30
    CHW1608-82N 82 1500 1.50
    CHW1608-R10 100 26 500 MHz 1300 1.80 200
    CHW1608-R12 120 1200 2.80 130
    CHW1608-R15 150 1100 4.10 100



      CHIP INDUCTORS CHW Series

      CHW2012(0805) Type

    Type  Inductance
    (nH)
    Inductance
    Test Frequency
    Tolerance Q (Min) Q
    Test Frequency
    S.R.F Min                  (MHz) RDC Max                     (Ω) IDC Max                      (mA)
    CHW2012-2N2 2.2 250 MHz ±0.15 nH
    or
    ±0.3 nH
    50 1000 MHz 6000 0.06 600
    CHW2012-2N7 2.7 35 6000 0.08
    CHW2012-3N9 3.9 60 6000 0.06
    CHW2012-4N7 4.7 5800 0.06
    CHW2012-5N6 5.6 ±2%
    or
    ±5%
    or
    ±10%
    5800 0.08
    CHW2012-6N8 6.8 5500 0.06
    CHW2012-8N2 8.2 5500 0.06
    CHW2012-10N 10 500 MHz 4800 0.08
    CHW2012-12N 12 4100 0.08
    CHW2012-15N 15 3600 0.08
    CHW2012-18N 18 3400 0.08
    CHW2012-22N 22 3300 0.1
    CHW2012-27N 27 2600 0.12
    CHW2012-33N 33 2400 0.15 500
    CHW2012-39N 39 2100 0.18
    CHW2012-47N 47 200 MHz 1700 0.15
    CHW2012-56N 56 1600 0.25
    CHW2012-68N 68 1450 0.27
    CHW2012-82N 82 150 MHz 1350 0.32
    CHW2012-R10 100 1200 0.43
    CHW2012-R12 120 50 250 MHz 1100 0.48
    CHW2012-R15 150 100 MHz 950 0.67
    CHW2012-R18 180 900 0.85 350
    CHW2012-R22 220 860 1.1 300
    CHW2012-R27 270 850 1.46 250
    CHW2012-R33 330 800 1.65 200
    CHW2012-R39 390 780 2.2 170



     CHIP INDUCTORS CHW Series

      CHW2520(1008) Type

    Type  Inductance
    (nH)
    Inductance
    Test Frequency
    Tolerance Q (Min) Q
    Test Frequency
    S.R.F Min                  (MHz) RDC Max                     (Ω) IDC Max                      (mA)
    CHW2520-3N3 3.3 100 MHz ±2%
    or
    ±5%
    or
    ±10%
    50 1000 MHz 6000 0.06 600
    CHW2520-6N8 6.8 5500 0.06 600
    CHW2520-8N2 8.2 5500 0.06 600
    CHW2520-10N 10 4300 0.08 600
    CHW2520-12N 12 60 500 MHz 3600 0.08 600
    CHW2520-15N 15 2700 0.08 600
    CHW2520-18N 18 350 MHz 2700 0.08 600
    CHW2520-22N 22 1800 0.10 600
    CHW2520-27N 27 1700 0.10 600
    CHW2520-33N 33 1500 0.10 600
    CHW2520-39N 39 1500 0.10 600
    CHW2520-47N 47 1500 0.10 600
    CHW2520-56N 56 1350 0.12 600
    CHW2520-68N 68 1300 0.15 600
    CHW2520-82N 82 1100 0.18 600
    CHW2520-R10 100 1100 0.20 500
    CHW2520-R12 120 25 MHz 50 100 MHz 950 0.22 500
    CHW2520-R15 150 880 0.33 500
    CHW2520-R18 180 800 0.33 500
    CHW2520-R22 220 45 730 0.45 500
    CHW2520-R27 270 650 0.75 500
    CHW2520-R33 330 570 0.90 500
    CHW2520-R39 390 530 1.20 400
    CHW2520-R47 470 480 1.30 400
    CHW2520-R56 560 430 1.45 300
    CHW2520-R68 680 380 2.45 200
    CHW2520-R82 820 350 2.75 150
    CHW2520-1R0 1000 35 50 MHz 310 3.60 90
    CHW2520-1R2 1200 7.96 MHz 25 7.96 MHz 230 1.20 230
    CHW2520-1R5 1500 180 1.30 220
    CHW2520-1R8 1800 135 1.45 210
    CHW2520-2R2 2200 105 1.55 200
    CHW2520-2R7 2700 70 1.70 195
    CHW2520-3R3 3300 55 1.90 185
    CHW2520-3R9 3900 48 2.10 180
    CHW2520-4R7 4700 43 2.30 175
    CHW2520-5R6 5600 20 42 2.60 170
    CHW2520-6R8 6800 39 2.80 165

     CHIP INDUCTORS CHW Series

      CHW3225(1210) Type

    Type  Inductance
    (nH)
    Inductance
    Test Frequency
    Tolerance Q (Min) Q
    Test Frequency
    S.R.F Min                  (MHz) RDC Max                     (Ω) IDC Max                      (mA)
    CHW3225-4N7 4.7 100 MHz ±2%
    or
    ±5%
    or
    ±10%
    50 1000 MHz 6000 0.06 600
    CHW3225-5N6 5.6 5500 0.08 600
    CHW3225-10N 10 60 500 MHz 4000 0.06 600
    CHW3225-12N 12 3400 0.06 600
    CHW3225-15N 15 3200 0.06 600
    CHW3225-18N 18 300 MHz 2800 0.06 600
    CHW3225-22N 22 2300 0.08 600
    CHW3225-27N 27 2000 0.08 600
    CHW3225-33N 33 1800 0.08 600
    CHW3225-39N 39 1800 0.08 600
    CHW3225-47N 47 1600 0.08 600
    CHW3225-56N 56 1500 0.1 600
    CHW3225-68N 68 1300 0.1 600
    CHW3225-82N 82 1200 0.1 600
    CHW3225-R10 100 1100 0.1 500
    CHW3225-R12 120 50 MHz 900 0.12 500
    CHW3225-R15 150 800 0.18 500
    CHW3225-R18 180 760 0.21 500
    CHW3225-R22 220 760 0.27 500
    CHW3225-R27 270 660 0.33 500
    CHW3225-R33 330 50 100 MHz 650 0.37 500
    CHW3225-R39 390 600 0.63 500
    CHW3225-R47 470 550 0.69 400
    CHW3225-R56 560 470 0.9 400
    CHW3225-R68 680 25 MHz 450 1.05 400
    CHW3225-R82 820 400 1.45 350
    CHW3225-1R0 1000 340 2.10 280
    CHW3225-1R2 1200 7.96 MHz 45 50 MHz 320 2.40 250
    CHW3225-1R5 1500 300 2.70 220
    CHW3225-1R8 1800 280 3.50 180
    CHW3225-2R2 2200 260 3.80 150
    CHW3225-2R7 2700 7.96 MHz 70 1.10 290
    CHW3225-3R3 3300 30 60 1.20 260
    CHW3225-3R9 3900 55 1.30 250
    CHW3225-4R7 4700 50 1.50 220
    CHW3225-5R6 5600 20 47 1.60 200
    CHW3225-6R8 6800 43 1.80 180
    CHW3225-8R2 8200 40 2.00 170

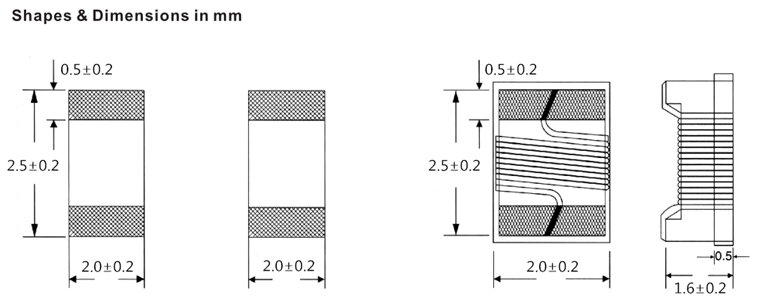

    shape and dimensions

    Application:

    ★mobile phones,personal computers,hard disk drives,and digital camemeras

    Remark:

    Special inquiries besides the above common used types can be met on your requirement.
