radial lead inductor RL 0405 | GETWELL

Short Description:

Radial lead inductor feature & characteristic:

◆Small size radial lead type.

◆Small mounting space required.

◆Excellent characteristics for High Q.

◆Minimized distributed capacitance hence high SRF.

◆Special lead wire construction prevents open circuit failures.

◆Covered with PVC sleeve or UL tube.

◆Available taped for auto insertion.


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Radial lead inductor feature & characteristic:

    ◆Small size radial lead type.

    ◆Small mounting space required.

    ◆Excellent characteristics for High Q.

    ◆Minimized distributed capacitance hence high SRF.

    ◆Special lead wire construction prevents open circuit failures.

    ◆Covered with PVC sleeve or UL tube.

    ◆Available taped for auto insertion.

    Radial power inductors application:

    ◆TVs and Audio equipment.

    ◆Telecommunication devices.

    ◆Buzzers and Alarm systems.

    ◆Switching Power Supplies.

    ◆Systems requiring Band and High Q.

    ◆ Other noise filters.

    Radial inductor specifications

    Type Inductance (uH)  Q(Min) Measuring Frenquency   S.R.F (MHz) Min DCR Ω DCI mA  Max
    RL0405-1R0M 1.0±20% 84 7.96MHz 200 0.10 1400
    RL0405-1R2M 1.2±20% 70 170 0.12 1200
    RL0405-1R5M 1.5±20% 80 140 0.15 1200
    RL0405-1R8M 1.8±20% 90 130 0.17 1100
    RL0405-2R2M 2.2±20% 98 125 0.20 1100
    RL0405-2R7M 2.7±20% 94 113 0.20 1000
    RL0405-3R3M 3.3±20% 93 92 0.22 1000
    RL0405-3R9M 3.9±20% 86 77 0.24 1000
    RL0405-4R7M 4.7±20% 84 59 0.26 800
    RL0405-5R6M 5.6±20% 84 42 0.28 800
    RL0405-6R8M 6.8±20% 82 35 0.30 800
    RL0405-8R2M 8.2±20% 77 32 0.35 800
    RL0405-100K 10±10% 70 2.52MHz 27 0.46 700
    RL0405-120K 12±10% 80 20 0.48 600
    RL0405-150K 15±10% 77 18 0.55 600
    RL0405-180K 18±10% 87 16 0.65 500
    RL0405-220K 22±10% 84 14 0.72 500
    RL0405-270K 27±10% 77 13 0.78 400
    RL0405-330K 33±10% 74 12 0.87 400
    RL0405-390K 39±10% 70 11 0.90 400
    RL0405-470K 47±10% 65 10 0.98 400
    RL0405-560K 56±10% 58 9.5 1.5 300
    RL0405-680K 68±10% 55 9.0 1.9 300
    RL0405-820K 82±10% 53 8.6 2.5 300
    RL0405-101K 100±10% 56 796KHz 7.0 3.0 200
    RL0405-121K 120±10% 70 6.3 3.8 200
    RL0405-151K 150±10% 63 5.7 4.5 200
    RL0405-181K 180±10% 62 5.3 5.0 200
    RL0405-221k 220±10% 66 3.0 5.8 200
    RL0405-271k 270±10% 66 4.5 6.5 150
    RL0405-331K 330±10% 60 1.0 7.0 150
    RL0405-391K 390±10% 56 3.8 7.7 150
    RL0405-471K 470±10% 61 3.5 8.0 120
    RL0405-561K 560±10% 59 3.2 8.5 120
    RL0405-681K 680±10% 56 3.0 9.5 120
    RL0405-821K 820±10% 61 2.8 15 100
    RL0405-102K 1000±10% 77 252KHz 2.5 17 100
    RL0405-122K 1200±10% 71 2.3 20 80
    RL0405-152K 1500±10% 76 2.1 22 80
    RL0405-182K 1800±10% 77 1.8 25 70
    RL0405-222K 2200±10% 81 1.6 26 60
    RL0405-272K 2700±10% 57 1.36 46 40
    RL0405-332K 3300±10% 60 1.27 50 30
    RL0405-392K 3900±10% 56 1.20 54 30
    RL0405-472K 4700±10% 65 1.06 60 30
    RL0405-562K 5600±10% 66 1.02 65 30
    RL0405-682K 6800±10% 66 0.96 72 30
    RL0405-822K 8200±10% 70 0.93 80 20
    RL0405-103K 10000±10% 35 79.6KHz 0.89 95 10

    Remark:

    1.Tolerance(J:5%, K:10%, L:15%, M:20%)

    2.Customer’s Specifications are welcome.

    Radial lead inductor images

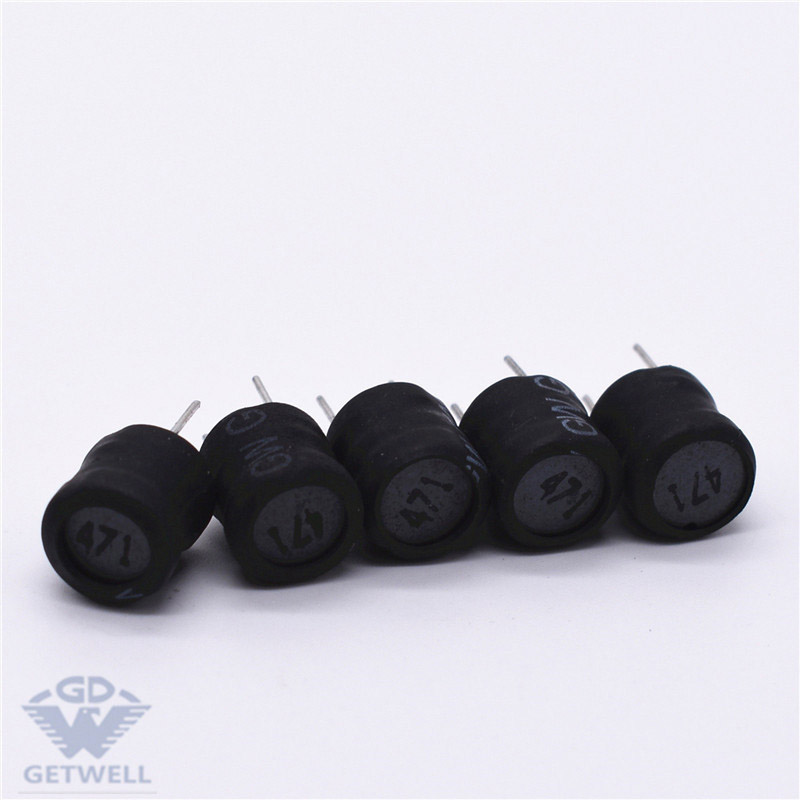

    radial inductor

    radial inductor

    inductor radial

    inductor radial

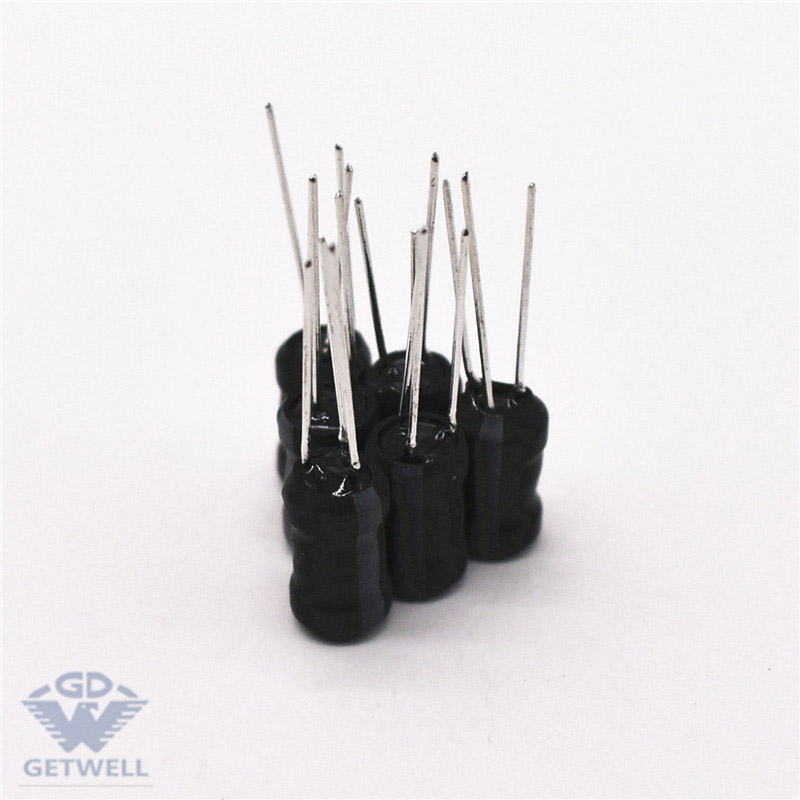

    2 pin radial lead inductor

    2 pin radial lead inductor
