Short Description:

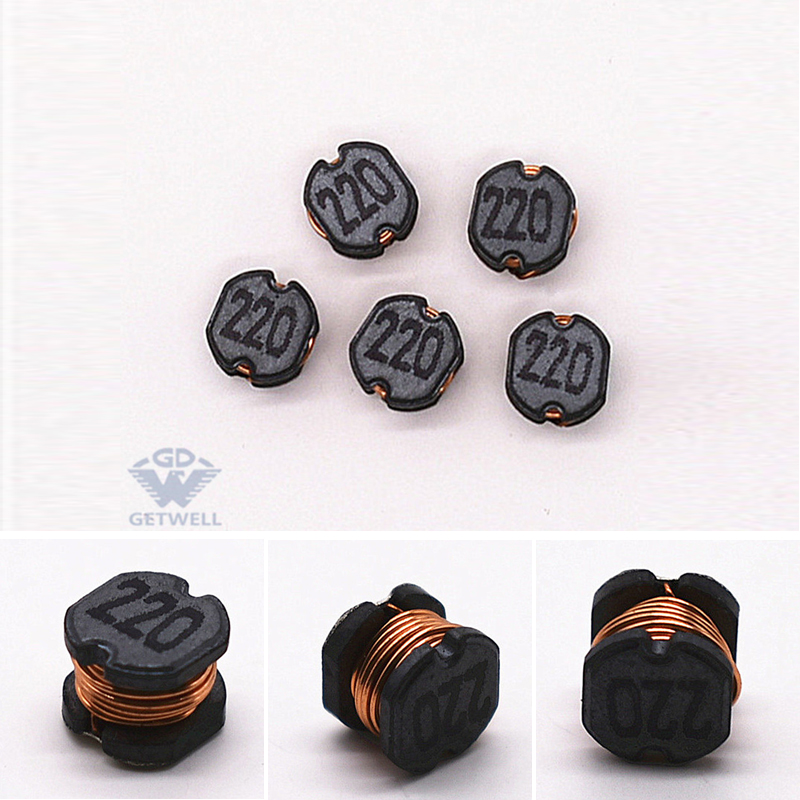

SMD power inductor feature & characteristic:

★flat bottom surface ensures secure,reliable mounting

★the serees are characterized by low profile,low DC resistance,and high current handling capacities

★these parts can be used in high-density mounting configurations

★provided in enbossed carrier tape packaging for usr with automatic mounting machines


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    SMD power inductor feature & characteristic:

    ★flat bottom surface ensures secure,reliable mounting

    ★the serees are characterized by low profile,low DC resistance,and high current handling capacities

    ★these parts can be used in high-density mounting configurations

    ★provided in enbossed carrier tape packaging for usr with automatic mounting machines

    Application:

    ★mobile phones,personal computers,hard disk drives,and others

    SMD inductor package types

    SMD POWER INDUCTORSSGAT4 Series
    Type Inductance
    (uH)
    DCR
    (Ω Max)
    DCI
    (mA Max )
    S.R.F
    Min
    SGAT4-100M 10 0.05 2.90 2.52MHz
    SGAT4-120M 12 0.06 2.80
    SGAT4-150M 15 0.07 2.30
    SGAT4-180M 18 0.08 2.15
    SGAT4-220M 22 0.09 2.10
    SGAT4-270M 27 0.10 1.90
    SGAT4-330L 33 0.12 1.85
    SGAT4-390L 39 0.15 1.45
    SGAT4-470L 47 0.17 1.35
    SGAT4-560K 56 0.20 1.30
    SGAT4-680K 68 0.22 1.20
    SGAT4-820K 82 0.25 1.00
    SGAT4-101K 100 0.30 0.95 1KHz
    SGAT4-121K 120 0.40 0.90
    SGAT4-151K 150 0.50 0.80
    SGAT4-181K 180 0.62 0.70
    SGAT4-221K 220 0.72 0.65
    SGAT4-271K 270 0.95 0.57
    SGAT4-331K 330 1.10 0.55
    SGAT4-391K 390 1.20 0.50
    SGAT4-471K 470 1.52 0.45
    SGAT4-561K 560 1.90 0.40

    shape and dimensions

    Remark:

    ★Special inquiries besides the above common used types can be met on your requirement.
