Good User Reputation for Flat Coil Inductor - Axial Choke Inductor ALP 0810 | GETWELL – Getwell Detail:

we are engaged in offering an extensive range of high-quality inductor.It has compact design and is used in power applications. We are offering this inductor at reasonable price.

Axial Choke Inductor Feature & Characteristic:

◆contain high-frequency ferrite

◆Comparatively large rated current

Axial Inductor Uses

◆Power supplies,DC-DC converters

◆TVs VTRs computers

◆compters peripherals

◆telephones air-conditions

◆home electric appliance

◆electronic toys and games

Axial Inductor Datasheet

 Type Inductance
(uH)
  Q(Min)  Measuring Frequency   SRF MHz  DCR Ω
(max)
 DCI Ma(max)
ALP0810-1R0K 1.0 120 7.96MHz 145 0.02 3400
ALP0810-1R2K 1.2 120 135 0.02 3400
ALP0810-1R5K 1.5 130 126 0.02 3400
ALP0810-1R8K 1.8 130 113 0.02 3400
ALP0810-2R2K 2.2 130 111 0.02 3300
ALP0810-2R7K 2.7 130 100 0.03 3000
ALP0810-3R3K 3.3 120 53 0.03 2800
ALP0810-3R9K 3.9 120 45 0.03 2400
ALP0810-4R7K 4.7 100 35 0.03 2400
ALP0810-5R6K 5.6 90 27 0.03 2300
ALP0810-6R8K 6.8 90 21 0.04 2100
ALP0810-8R2K 8.2 80 18 0.04 2000
ALP0810-100K 10 60 2.52MHz 17 0.05 1800
ALP0810-120K 12 60 15 0.05 1500
ALP0810-150K 15 70 13 0.06 1400
ALP0810-220K 18 70 11 0.07 1300
ALP0810-270K 22 70 11 0.08 1200
ALP0810-330K 27 60 10 0.11 1100
ALP0810-390K 33 60 9.2 0.12 1000
ALP0810-470K 39 55 9 0.13 900
ALP0810-560K 47 50 7 0.14 1000
ALP0810-680K 56 50 6.8 0.16 900
ALP0810-820K 68 50 6.1 0.21 800
ALP0810-101K 82 50 796KHz 6.0 0.24 700
ALP0810-121K 100 50 4.0 0.30 600
ALP0810-121K 120 45 4.0 0.34 400
ALP0810-151K 150 45 3.8 0.48 400
ALP0810-181K 180 45 3.2 0.55 350
ALP0810-221K 220 40 3.2 0.62 350
ALP0810-271K 270 35 2.7 0.69 350
ALP0810-331K 330 35 2.80 0.78 300
ALP0810-391K 390 35 2.3 1.4 300
ALP0810-471K 470 35 2.1 1.6 250
ALP0810-561K 560 30 2.0 1.7 250
ALP0810-681K 680 30 1.9 2.0 200
ALP0810-821K 820 25 1.9 2.4 180
ALP0810-102K 1000 35 252KHz 1.5 2.4 150
ALP0810-122K 1200 40 1.4 2.4 100
ALP0810-152K 1500 40 1.3 2.5 80
ALP0810-182K 1800 45 1.1 3.4 70
ALP0810-222K 2200 45 1.0 3.8 60
ALP0810-272K 2700 50 0.9 4.9 60
ALP0810-332K 3300 50 0.8 5.7 50
ALP0810-392K 3900 45 0.8 6.3 50
ALP0810-472K 4700 40 0.8 7.3 50
ALP0810-562K 5600 55 0.6 11.0 40
ALP0810-682K 6800 50 0.5 12.0 40
ALP0810-822K 8200 45 0.5 14.0 40
ALP0810-103K 10000 65 79.6KHz 0.4 22.0 35
ALP0810-123K 12000 65 0.4 24 35
ALP0810-153K 15000 65 0.3 29 35
ALP0810-183K 18000 65 0.3 32 35
ALP0810-223K 22000 60 0.3 47 30
ALP0810-273K 27000 55 0.2 54 30
ALP0810-333K 33000 55 0.2 62 25
ALP0810-393K 39000 50 0.2 69 25

Remark:

Special inquiries besides the above common used types can be met on your requirement.

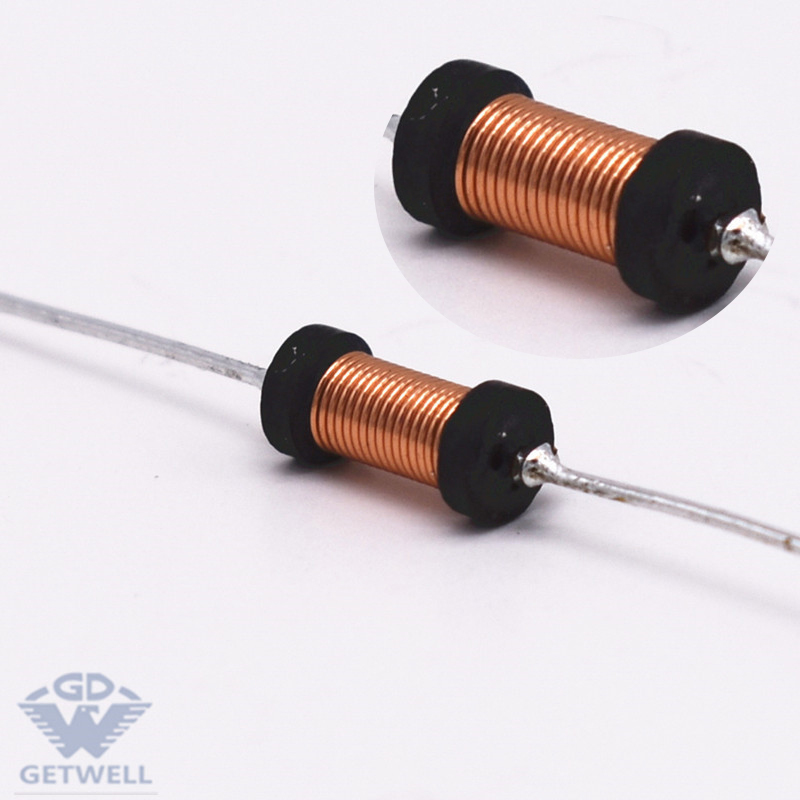

Inductor Axial Image

200 uh 3 a axial inductor

200 uh 3 a axial inductor
