Discount Price Coil Toroid Inductor - radial leaded inductor-RLP0913W3R-21.5MH-E | GETWELL – Getwell
Discount Price Coil Toroid Inductor - radial leaded inductor-RLP0913W3R-21.5MH-E | GETWELL – Getwell Detail:
Radial leaded inductor feature & characteristic:
★contain high-frequency ferrite
★comparatively large rated current.
Radial lead inductors application:
★Power supplies ,DC-DC converters.
★TVs,VTRs,computers.
★Computer peripheras.
★Telephones,air-conditions
★Home electric appliance.
★Electronic toys and games
Radial inductor specifications
SGN Type Power Inductor
| SYMBOL | A | B | C | D | E | F1/F2 | G | W | （S） | （F） |
| 标注 | ||||||||||
| DIMENSIONS | 9.5 | 14 | 11 | 11 | 18 | 3 | 10.5 | Φ0.60 | START | FINISH |
| RL0913W3 | MAX | MAX | ±2.0 | ±2.0 | ±2.0 | ±0.3 | MAX | ±0.05 | 起线 | 收线 |
| SYMBOL | A | B | C/D | E | F1 | F2 | W | G | （S） | （F） |
| 标注 | ||||||||||
| DIMENSIONS | 8.5 | 12.5 | 10 | 15 | 3 | 2.5 | Φ0.50 | 9 | START | FINISH |
| Specification Table | ||||||||||
| Part Number | Inductance L0(mH) | DCR (mΩ）typ.@25℃ | ||||||||
| L1-2 | L1-3 | R1-2 | R1-3 | |||||||
| RL0913W3 | 6.5±10% | 60±10% | 20.0MAX | 60.0MAX | ||||||
Remark:
Customer’s Specifications are welcome.

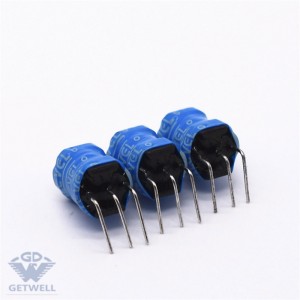

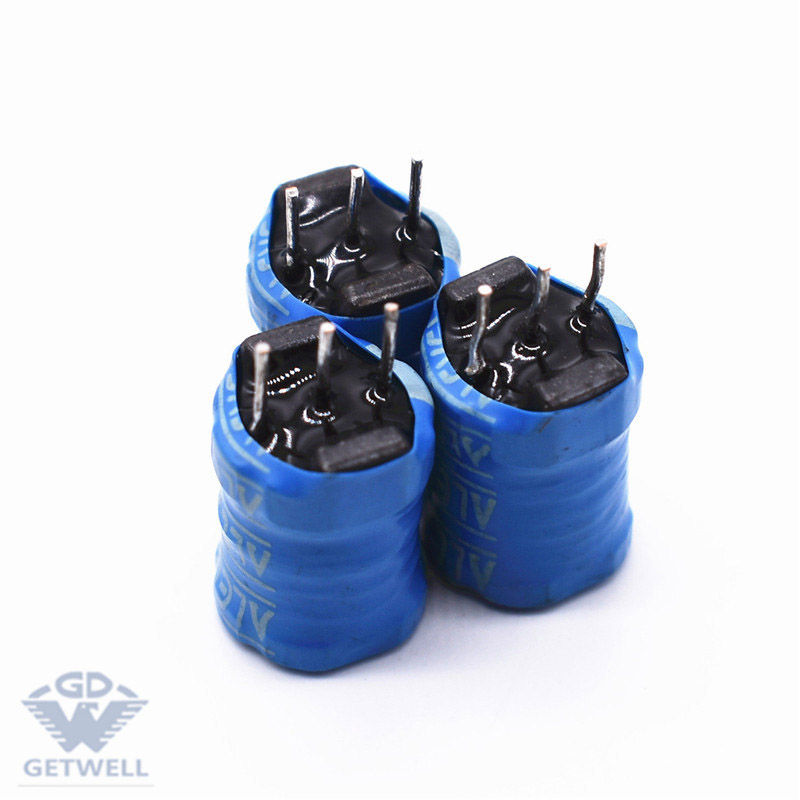

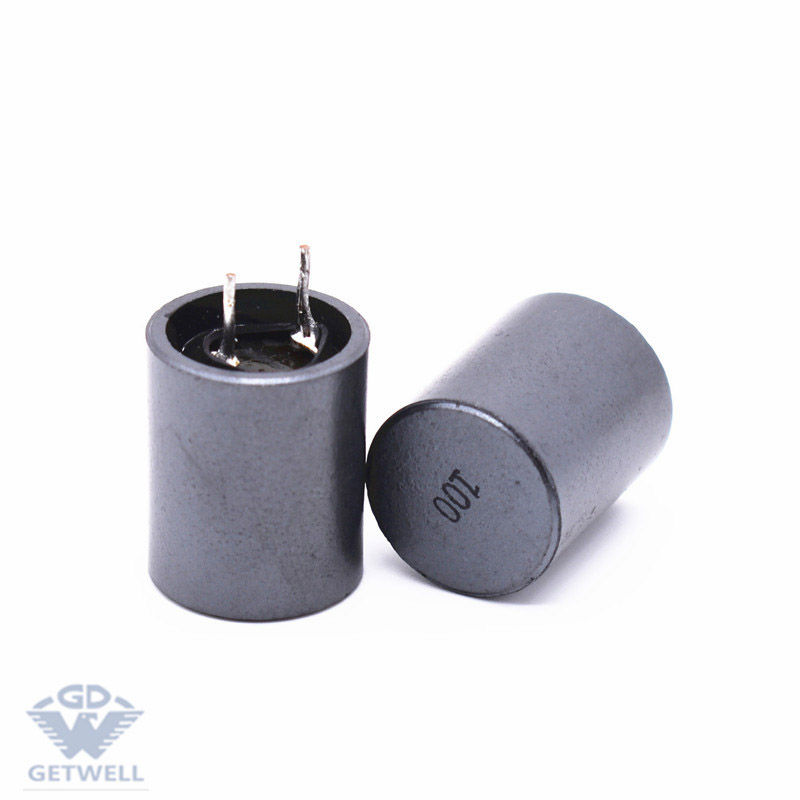

Radial leaded inductor images
hl150 inductor radial
ferrite core radial leaded inductor
pin radial lead inductor
radial inductor
