Radial Choke Inductors-FCR 0415 | GETWELL

Short Description:

Radial power inductor feature & characteristic:

◆Low cost design.

◆General purpose inductors.

◆ Use ferrite cores.

◆High saturation current.

◆Tinplated leads.

◆Coated with varnish.


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Radial power inductor feature & characteristic:

    ◆Low cost design.

    ◆General purpose inductors.

    ◆ Use ferrite cores.

    ◆High saturation current.

    ◆Tinplated leads.

    ◆Coated with varnish.

    Radial power inductors application:

    ◆Power supplies.

    ◆Power amplifiers.

    ◆Noise filters for switching regulators.

    ◆SCR and Triac circuits.

    ◆Output chokes.

    ◆Other filters.

    Radial type inductor

    Part No. Inductance @1KHz (uH) DC Resistance(Q )Max Rated Current A Max (mm) B + 1.0(mm)
    FCR 0415-4R7M 4.7 + 20% 0.024 2.6 7 5.8
    FCR 0415-5R6M 5.6 + 20% 0.03 1.9 5.65
    FCR 0415-6R8M 6.8 + 20% 0.04 1.57  6.5  5.5
    FCR 0415-8R2M 8.2 + 20% 0.06 1.27 5.35
    FCR 0415-100K 10 + 10% 0.08 1 5.2

    Radial Choke Inductors  Dimensions(unit:mm)

    dimensions

    Remark:

    1.Tolerance(J:5%, K:10%, L:15%, M:20%)

    2.Customer’s Specifications are welcome.

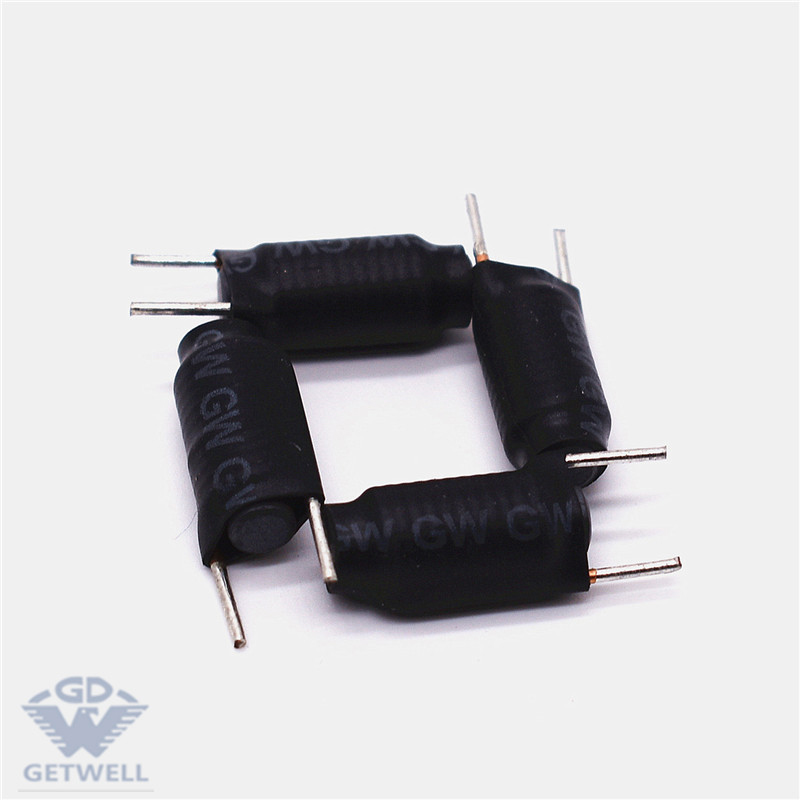

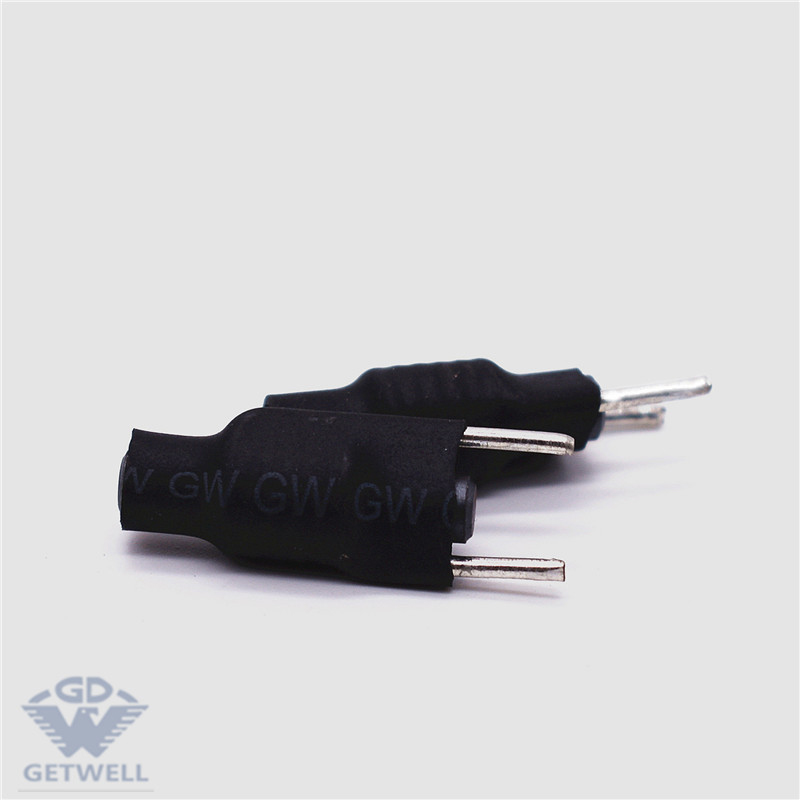

    Radial leaded power inductor images:

    voltage of inductor

    voltage of inductor

    radial lead inductor

    radial lead inductor

    Radial Choke Inductors

    Radial Choke Inductors
