Short Description:

Inductor color code feature & characteristic:

◆low cost solution

◆exceptional Q characteristics,high reliability

◆High self-resonant frequency,low DCR


  • FOB Price: US $0.01 - 9.9 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 1000000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Inductor color code feature & characteristic:

    ◆low cost solution

    ◆exceptional Q characteristics,high reliability

    ◆High self-resonant frequency,low DCR

    Fixed inductor applications :

    ◆Choke coils

    ◆RF coils

    ◆peaking coils

    Inductor color code chart

    Type Inductance
    (uh)
     Q(min)  Frequency of L/Q(MHZ)  S.R.F.(MHZ)min  DC Resistance(Ω)max Rated DC Current
    (mA)
    AL0510-R56k 0.56±10% 50 25.2 280 0.14 1150
    AL0510-R68k 0.68±10% 250 0.15 1100
    AL0510-R82k 0.82±10% 220 0.22 900
    AL0510-1R0k 1.0±10% 200 0.29 785
    AL0510-1R2k 1.2±10% 33 7.96 180 0.42 650
    AL0510-1R5k 1.5±10% 160 0.5 600
    AL0510-1R8k 1.8±10% 150 0.65 525
    AL0510-2R2k 2.2±10% 135 0.95 435
    AL0510-2R7k 2.7±10% 120 1.5 385
    AL0510-3R3k 3.3±10% 110 2 300
    AL0510-3R9k 3.9±10% 100 2.3 280
    AL0510-4R7k 4.7±10% 90 2.8 260
    AL0510-5R6k 5.6±10% 45 60 0.32 495
    AL0510-6R8k 6.8±10% 55 0.5 395
    AL0510-8R2k 8.2±10% 50 0.6 360
    AL0510-100k 10±10% 45 0.9 290
    AL0510-120k 12±10% 60 2.52 42 1.2 265
    AL0510-150k 15±10% 65 40 1.7 240
    AL0510-180k 18±10% 34 2.3 185
    AL0510-220k 22±10% 30 2.6 175
    AL0510-270k 27±10% 45 25 2 170
    AL0510-330k 33±10% 19 2.3 165
    AL0510-390k 39±10% 15 2.5 165
    AL0510-470k 47±10% 14 2.6 165
    AL0510-560k 56±10% 50 12 3 164
    AL0510-680k 68±10% 11 3.3 156
    AL0510-820k 82±10% 10 3.9 143
    AL0510-101k 100±10% 9 4.5 133
    AL0510-121k 120±10% 60 0.796 8.5 5.2 124
    AL0510-151k 150±10% 40 7.8 6.18 114
    AL0510-181k 180±10% 60 7 6.8 108
    AL0510-221k 220±10% 6.2 7.5 103
    AL0510-271k 270±10% 5.6 8.2 103
    AL0510-331k 330±10% 5 9.1 102
    AL0510-391k 390±10% 4.5 10 102
    AL0510-471k 470±10% 4 11 100
    AL0510-561k 560±10% 3.6 12.3 85
    AL0510-681k 680±10% 3.6 13.7 81
    AL0510-821k 820±10% 1.32 3.1 180
    AL0510-102k 1000±10% 1.25 4.1 156

    Remark:

    Special inquiries besides the above common used types can be met on your requirement.

    People also ask:

    1、What are some common problems with fixed inductance?

    2、fixed inline inductor-AL0204

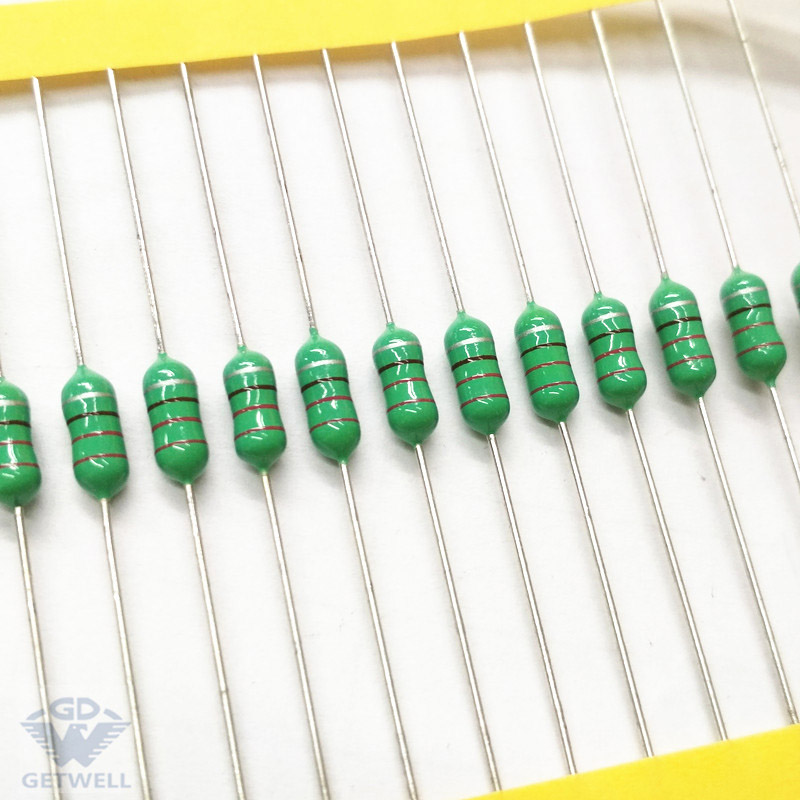

    Fixed inductor images
