Radial choke inductor feature & characteristic:
◆Small size radial lead type.
◆Small mounting space required.
◆Excellent characteristics for High Q.
◆Minimized distributed capacitance hence high SRF.
◆Special lead wire construction prevents open circuit failures.
◆Covered with PVC sleeve or UL tube.
◆Available taped for auto insertion.
Radial leaded inductor application:
◆TVs and Audio equipment.
◆Telecommunication devices.
◆Buzzers and Alarm systems.
◆Switching Power Supplies.
◆Systems requiring Band and High Q.
◆ Other noise filters.
Radial inductor specifications
Type | Inductance(μH) | Q(Min) | Measuring Frequency | SRF MHz (Min) | DCR(Ω) | Rated Current(mA) (Max) |
RL0810-1R0M | 1.0±20% | 90 | 7.96MHz | 100 | 0.02 | 3400 |
RL0810-1R2M | 1.2±20% | 90 | 90 | 0.02 | 3400 | |
RL0810-1R5M | 1.5±20% | 95 | 80 | 0.02 | 3400 | |
RL0810-1R8M | 1.8±20% | 95 | 75 | 0.03 | 3300 | |
RL0810-2R2M | 2.2±20% | 100 | 70 | 0.03 | 3000 | |
RL0810-2R7M | 2.7±20% | 110 | 60 | 0.04 | 3000 | |
RL0810-3R3M | 3.3±20% | 110 | 56 | 0.04 | 3000 | |
RL0810-3R9M | 3.9±20% | 110 | 52 | 0.05 | 2900 | |
RL0810-4R7M | 4.7±20% | 110 | 30 | 0.05 | 2900 | |
RL0810-5R6M | 5.6±20% | 110 | 30 | 0.06 | 2600 | |
RL0810-6R8M | 6.8±20% | 90 | 20 | 0.06 | 2500 | |
RL0810-8R2M | 8.2±20% | 80 | 17 | 0.06 | 2000 | |
RL0810-100K | 10±10% | 90 | 2.52MHz | 12 | 0.10 | 1600 |
RL0810-120K | 12±10% | 90 | 11 | 0.10 | 1400 | |
RL0810-150K | 15±10% | 90 | 10 | 0.10 | 1300 | |
RL0810-180K | 18±10% | 80 | 9 | 0.11 | 1200 | |
RL0810-220K | 22±10% | 70 | 8 | 0.13 | 1100 | |
RL0810-270K | 27±10% | 70 | 7 | 0.14 | 900 | |
RL0810-330K | 33±10% | 70 | 7 | 0.16 | 800 | |
RL0810-390K | 39±10% | 70 | 6 | 0.16 | 700 | |
RL0810-470K | 47±10% | 70 | 5.5 | 0.16 | 700 | |
RL0810-560K | 56±10% | 60 | 5.5 | 0.22 | 600 | |
RL0810-680K | 68±10% | 60 | 5.0 | 0.23 | 500 | |
RL0810-820K | 82±10% | 60 | 4.5 | 0.27 | 400 | |
RL0810-101K | 100±10% | 40 | 796KHz | 4.5 | 0.29 | 400 |
RL0810-121K | 120±10% | 40 | 4.5 | 0.33 | 350 | |
RL0810-151K | 150±10% | 40 | 4.5 | 0.46 | 350 | |
RL0810-181K | 180±10% | 40 | 4.0 | 0.51 | 300 | |
RL0810-221K | 220±10% | 40 | 3.5 | 0.62 | 250 | |
RL0810-271K | 270±10% | 30 | 3.0 | 0.65 | 250 | |
RL0810-331K | 330±10% | 30 | 3.00 | 0.79 | 200 | |
RL0810-391K | 390±10% | 30 | 2.5 | 0.91 | 180 | |
RL0810-471K | 470±10% | 30 | 2.5 | 1 | 160 | |
RL0810-561K | 560±10% | 30 | 2.0 | 1 | 140 | |
RL0810-681K | 680±10% | 30 | 2.0 | 2 | 140 | |
RL0810-821K | 820±10% | 25 | 2.0 | 2 | 120 | |
RL0810-102K | 1000±10% | 50 | 252KHz | 2.0 | 2 | 100 |
RL0810-122K | 1200±10% | 45 | 1.5 | 2 | 80 | |
RL0810-152K | 1500±10% | 45 | 1.5 | 3 | 80 | |
RL0810-182K | 1800±10% | 45 | 1.5 | 4 | 70 | |
RL0810-222K | 2200±10% | 50 | 1.0 | 4 | 60 | |
RL0810-272K | 2700±10% | 50 | 1.0 | 5 | 60 | |
RL0810-332K | 3300±10% | 50 | 0.9 | 6 | 50 | |
RL0810-392K | 3900±10% | 50 | 0.8 | 8 | 50 | |
RL0810-472K | 4700±10% | 55 | 0.7 | 11 | 45 | |
RL0810-562K | 5600±10% | 55 | 0.6 | 11 | 45 | |
RL0810-682K | 6800±10% | 55 | 0.6 | 14 | 40 | |
RL0810-822K | 8200±10% | 60 | 0.6 | 15 | 35 | |
RL0810-103K | 10000±10% | 100 | 79.6KHz | 0.5 | 20 | 35 |
RL0810-123K | 12000±10% | 100 | 0.4 | 24 | 35 | |
RL0810-153K | 15000±10% | 100 | 0.4 | 28 | 30 | |
RL0810-183K | 18000±10% | 100 | 0.4 | 42 | 30 | |
RL0810-223K | 22000±10% | 100 | 0.3 | 43 | 25 | |
RL0810-273K | 27000±10% | 100 | 0.3 | 55 | 25 | |
RL0810-333K | 33000±10% | 90 | 0.3 | 65 | 25 | |
RL0810-393K | 39000±10% | 90 | 0.2 | 87 | 25 | |
RL0810-473K | 47000±10% | 85 | 0.2 | 98 | 25 | |
RL0810-563K | 56000±10% | 80 | 0.2 | 128 | 20 | |
RL0810-683K | 68000±10% | 70 | 0.2 | 141 | 20 | |
RL0810-823K | 82000±10% | 70 | 0.2 | 161 | 20 | |
RL0810-104K | 100000±10% | 55 | 0.2 | 180 | 20 |
Remark:
1.Tolerance(J:5%, K:10%, L:15%, M:20%)
2.Customer’s Specifications are welcome.
Radial choke inductor images

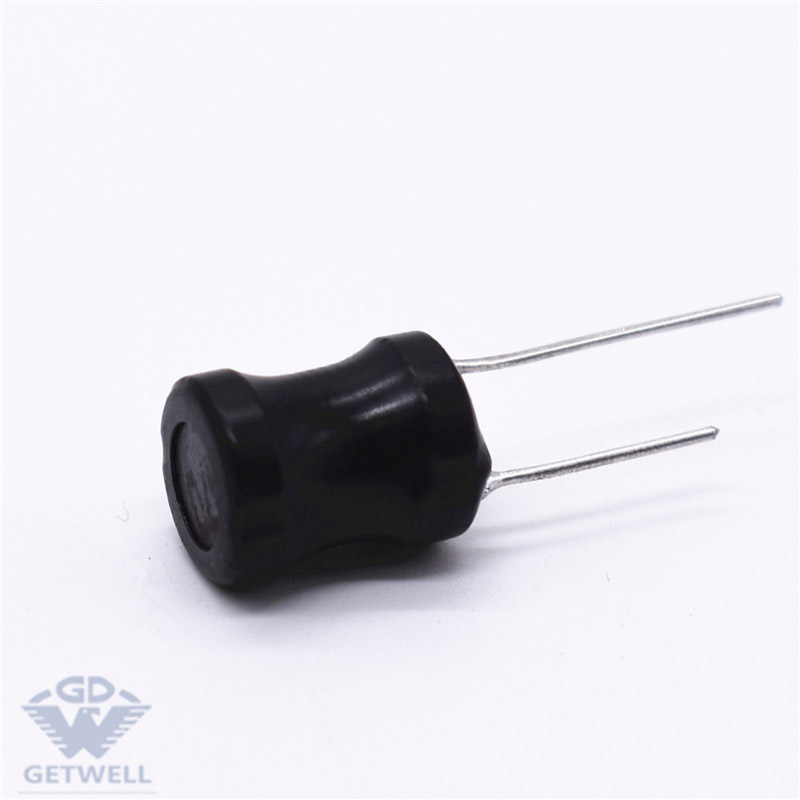

radial inductor

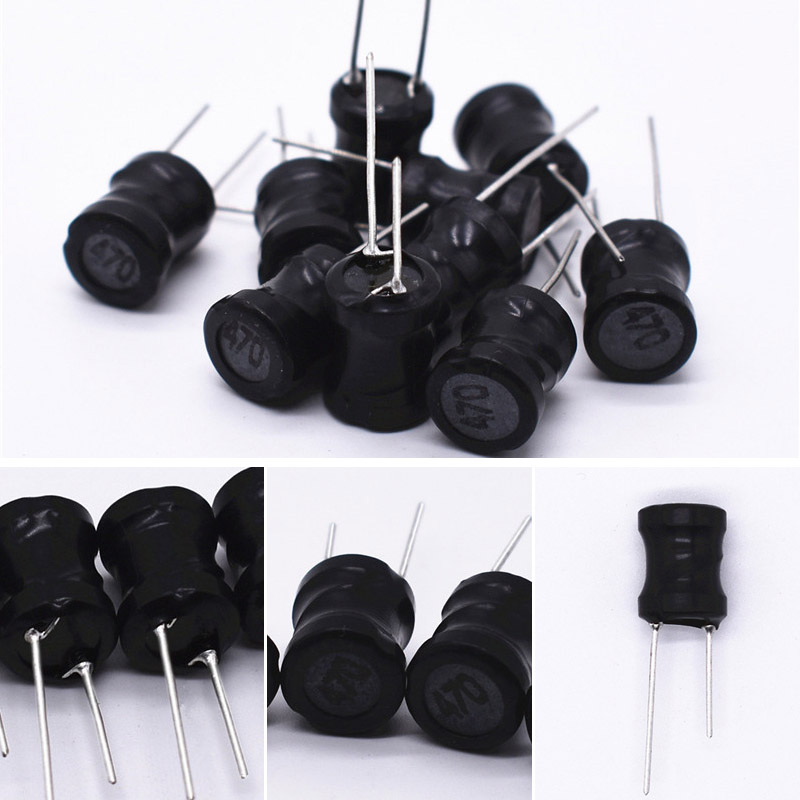

I-shaped inductance

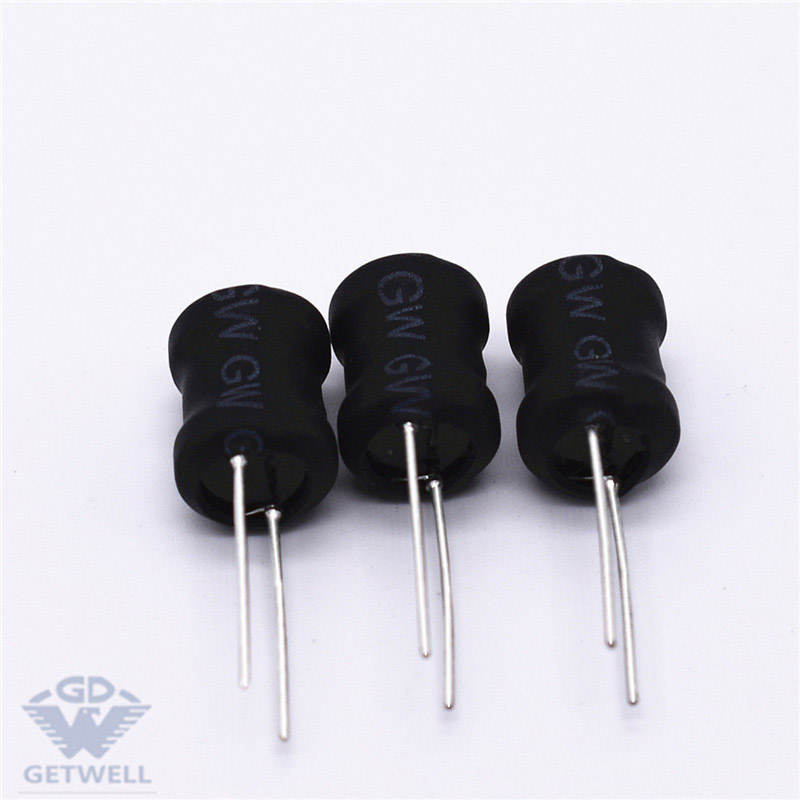

ferrite core radial leaded inductor

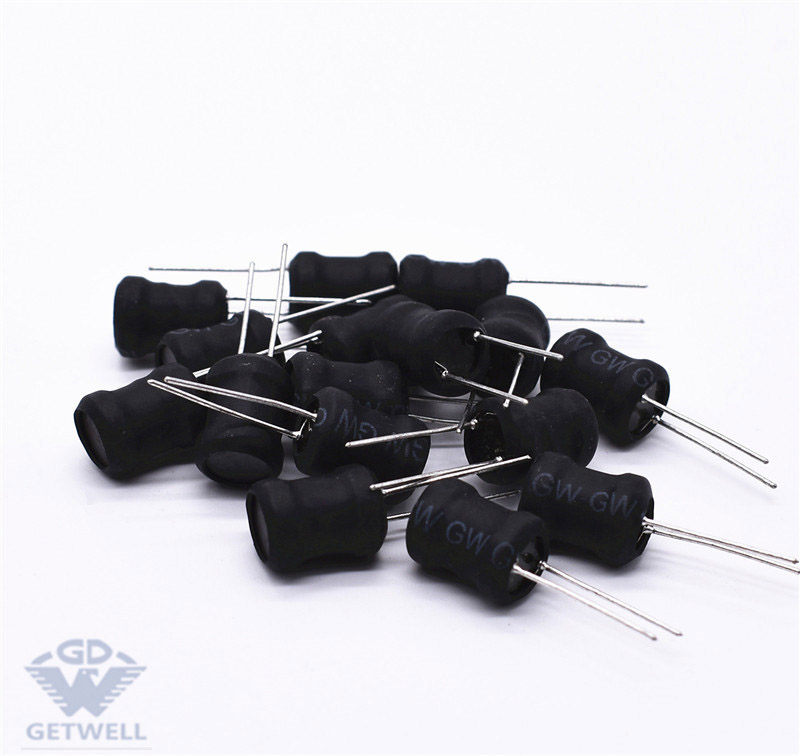

2 pin radial lead inductor
pin radial lead inductor
